8520 003100

Active

Belden Inc.

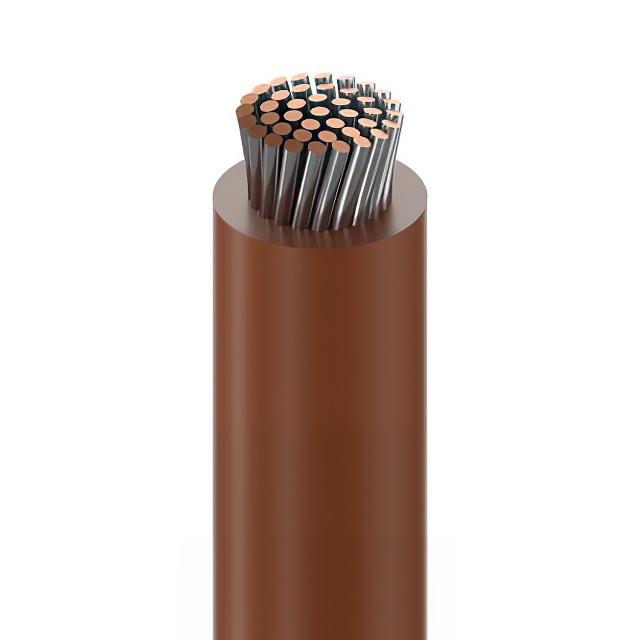

HOOK-UP STRND 14AWG ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

8520 003100

Active

Belden Inc.

HOOK-UP STRND 14AWG ORANGE

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8520 003100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.111 in
Jacket (Insulation) Diameter [diameter]	2.82 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.018 in
Jacket (Insulation) Thickness	0.46 mm
Jacket Color	Orange
Length [x]	30.5 m
Length [x]	100 ft
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	13.5 AWG

8520 Series

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Qualification	Conductor Material	Jacket Color	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]	Operating Temperature
Belden Inc. 8520 0061000	0.018 in	0.46 mm	1000 ft	304.8 m	13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Blue	Poly-Vinyl Chloride (PVC)	Chemical Resistant	41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up
Belden Inc. 8520 0031000	0.018 in	0.46 mm	1000 ft	304.8 m	13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Orange	Poly-Vinyl Chloride (PVC)		41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up
Belden Inc. 8520 013100	0.018 in	0.46 mm			13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Blue	Poly-Vinyl Chloride (PVC)	Chemical Resistant	41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up	30.5 m	100 ft
Belden Inc. 8520 0091000	0.018 in	0.46 mm	1000 ft	304.8 m	13.5 AWG	MIL-W-76C Type MW	Copper Tinned		Poly-Vinyl Chloride (PVC)	Chemical Resistant	41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up
Belden Inc. 8520 005100	0.018 in	0.46 mm			13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Green	Poly-Vinyl Chloride (PVC)	Chemical Resistant	41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up	30.5 m	100 ft	80 °C
Belden Inc. 8520 0101000	0.018 in	0.46 mm	1000 ft	304.8 m	13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Black	Poly-Vinyl Chloride (PVC)	Chemical Resistant	41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up
Belden Inc. 8520 0051000	0.018 in	0.46 mm	1000 ft	304.8 m	13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Green	Poly-Vinyl Chloride (PVC)	Chemical Resistant	41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up
Belden Inc. 8520 003100	0.018 in	0.46 mm			13.5 AWG	MIL-W-76C Type MW	Copper Tinned	Orange	Poly-Vinyl Chloride (PVC)		41	30 AWG	1000 V	0.111 in	2.82 mm	Hook-Up	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.63
		200	$ 3.45
		300	$ 3.35
		500	$ 3.23
		700	$ 3.15
		1000	$ 3.06
		2500	$ 2.86

Description

General part information

8520 Series

14 AWG Hook-Up Wire 41/30 Orange 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Cabling Solutions for Industrial Applications

Datasheet
