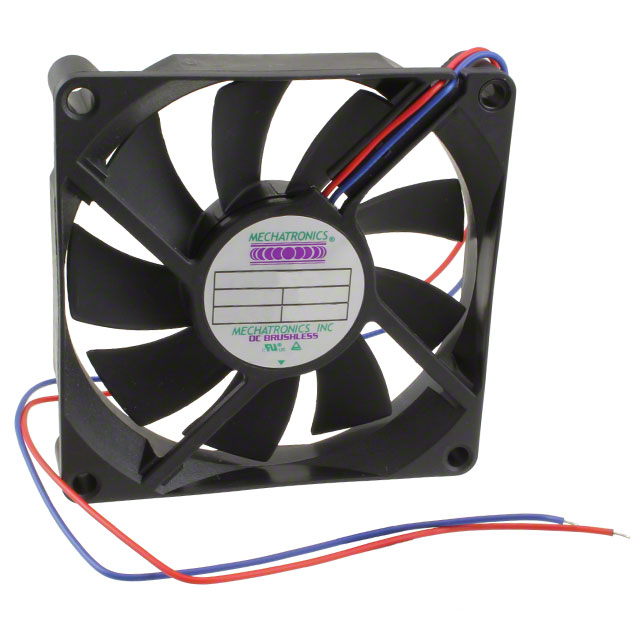

G8015H24B-RGR
ActiveMechatronics Bearing Group
FAN AXIAL 80X15.3MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
G8015H24B-RGR
ActiveMechatronics Bearing Group
FAN AXIAL 80X15.3MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G8015H24B-RGR |
|---|---|
| Air Flow | 1.04 mł/min |
| Air Flow | 37 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 36 dB |
| RPM | 4000 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 42.3 Pa |
| Static Pressure | 0.17 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.128 lb |
| Weight | 58.06 g |
| Width [x] | 15.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.69 | |
| 10 | $ 11.16 | |||
| 25 | $ 10.49 | |||
| 50 | $ 10.10 | |||
| 100 | $ 9.30 | |||
| 300 | $ 8.70 | |||
| 500 | $ 8.57 | |||
Description
General part information
G8015H24B-RGR
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 37.0 CFM (1.04m³/min) 2 Wire Leads
