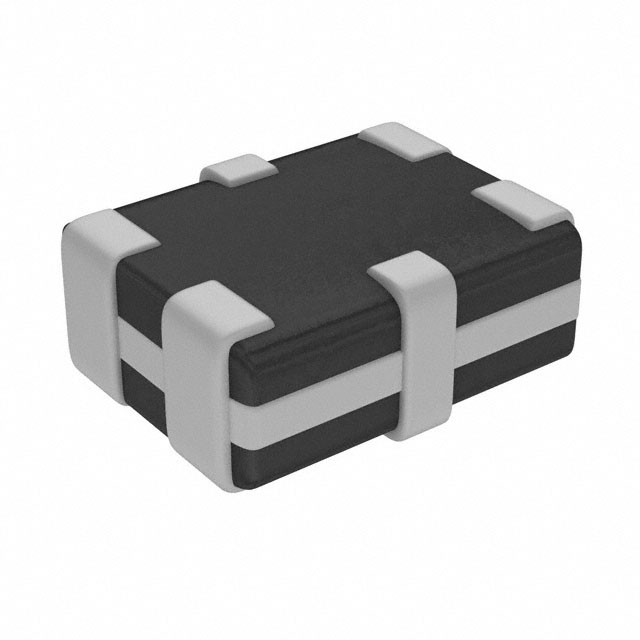

Specification	EXC-24CS900U

Current Rating (Max)	100 mA
DC Resistance (DCR) (Max)	3 Ohm
Features	TVS Diode ESD Protection
Filter Type	Signal Line
Height (Max)	0.024 in
Impedance	90 Ohms
Mounting Type	Surface Mount
Number of Lines	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	0503 (1308 Metric)
Size / Dimension Length	0.049 in
Size / Dimension Width	0.039 in
Voltage Rating - DC	5 V

EXC-24 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Impedance	Number of Lines	Current Rating (Max)	Voltage Rating - DC	Height (Max)	DC Resistance (DCR) (Max)	Size / Dimension Width	Size / Dimension Length	Filter Type	Package Leads	Package Name	Package / Case
Panasonic Electronic Components EXC-24CG900U	-40 °C	85 °C	Surface Mount	90 Ohms	2	100 mA	5 V	0.024 in	3 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CD900U			Surface Mount	90 Ohms	2	160 mA	5 V	0.024 in	2 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CH900U	-40 °C	85 °C	Surface Mount	90 Ohms	2	130 mA	5 V	0.024 in	2.5 Ohm	0.039 in	0.049 in	Signal Line			0504 (1210 Metric)
Panasonic Electronic Components EXC-24CF900U	-40 °C	85 °C	Surface Mount	90 Ohms	2	130 mA	5 V	0.024 in	2.5 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CG240U	-40 °C	85 °C	Surface Mount	24 Ohms	2	160 mA	5 V	0.024 in	1.5 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CE121U	-40 °C	85 °C	Surface Mount	120 Ohms	2	140 mA	5 V	0.024 in	2.2 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CP221U	-40 °C	85 °C	Surface Mount	220 Ohms	2	350 mA	5 V	0.024 in	400 mOhm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CE201U	-40 °C	85 °C	Surface Mount	200 Ohms	2	130 mA	5 V	0.024 in	2.7 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CE360UP	-40 °C	85 °C	Surface Mount	36 Ohms	2	200 mA	5 V	0.024 in	1 Ohm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
Panasonic Electronic Components EXC-24CN601X	-40 °C	85 °C	Surface Mount	600 Ohms	2	200 mA	5 V	0.024 in	900 mOhm	0.039 in	0.049 in	Signal Line	4 Leads	0504 (1210 Metric)
