HPC 3012BMV-220M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 22UH 800MA 0.84OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

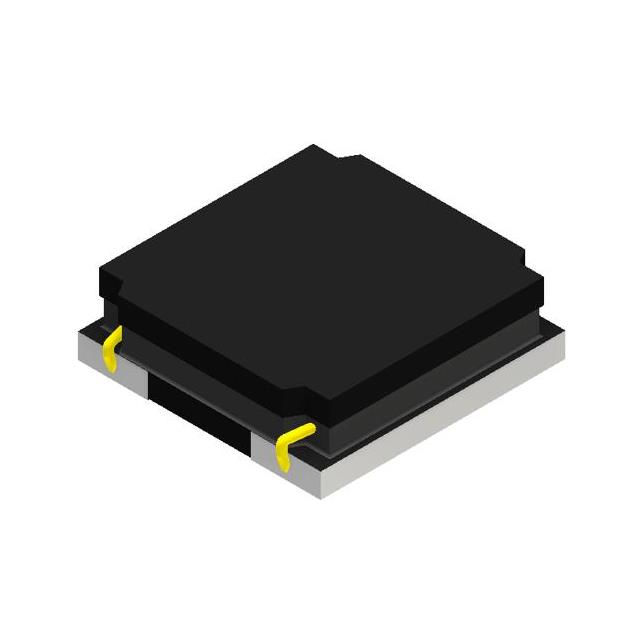

HPC 3012BMV-220M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 22UH 800MA 0.84OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HPC 3012BMV-220M	HPC 3012BMV Series

Current - Saturation (Isat)	630 mA	1.3 - 900 A
Current Rating (Amps)	800 mA	1.2 - 800 A
DC Resistance (DCR)	-	168 mOhm
DC Resistance (DCR) [Max]	840 mOhm	90 - 840 mOhm
Height - Seated (Max) [Max]	1.2 mm	1.2 mm
Height - Seated (Max) [Max]	0.047 in	0.047 in
Inductance	22 µH	1 - 22 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Ratings	AEC-Q200	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3012	3012
Tolerance	20 %	20 %
Type	Wirewound	Wirewound

HPC 3012BMV Series

FIXED IND 3.3UH 2.1A 0.13OHM SMD

Part	Inductance	Current - Saturation (Isat)	Mounting Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	DC Resistance (DCR) [Max]	Material - Core	Inductance Frequency - Test	Current Rating (Amps)	DC Resistance (DCR)
TAI-TECH Advanced Electronics Co., Ltd. HPC 3012BMV-3R3M	3.3 µH	1.6 A	Surface Mount	Shielded	-55 °C	125 °C	AEC-Q200	20 %	1.2 mm	0.047 in	Wirewound	3012	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric	130 mOhm	Ferrite	100 kHz	2.1 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 3012BMV-100M	10 µH	900 mA	Surface Mount	Shielded	-55 °C	125 °C	AEC-Q200	20 %	1.2 mm	0.047 in	Wirewound	3012	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric	345 mOhm	Ferrite	100 kHz	1.2 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 3012BMV-2R2M	2.2 µH	2.1 A	Surface Mount	Shielded	-55 °C	125 °C	AEC-Q200	20 %	1.2 mm	0.047 in	Wirewound	3012	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric	90 mOhm	Ferrite	100 kHz	2.5 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 3012BMV-4R7M	4.7 ÁH	1.3 A	Surface Mount	Shielded	-55 °C	125 °C	AEC-Q200	20 %	1.2 mm	0.047 in	Wirewound	3012	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric		Ferrite	100 kHz	1.7 A	168 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 3012BMV-1R0M	1 µH	3.3 A	Surface Mount	Shielded	-55 °C	125 °C	AEC-Q200	20 %	1.2 mm	0.047 in	Wirewound	3012	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric		Ferrite	100 kHz	3.8 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 3012BMV-220M	22 µH	630 mA	Surface Mount	Shielded	-55 °C	125 °C	AEC-Q200	20 %	1.2 mm	0.047 in	Wirewound	3012	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric	840 mOhm	Ferrite	100 kHz	800 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.20
		10	$ 0.16
		25	$ 0.15
		50	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Digi-Reel®	1	$ 0.20
		10	$ 0.16
		25	$ 0.15
		50	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Tape & Reel (TR)	3000	$ 0.09
		6000	$ 0.08
		9000	$ 0.08
		15000	$ 0.07
		21000	$ 0.07
		30000	$ 0.07
		75000	$ 0.06

Description

General part information

HPC 3012BMV Series

22 µH Shielded Wirewound Inductor 800 mA 840mOhm Max 1212 (3030 Metric)
