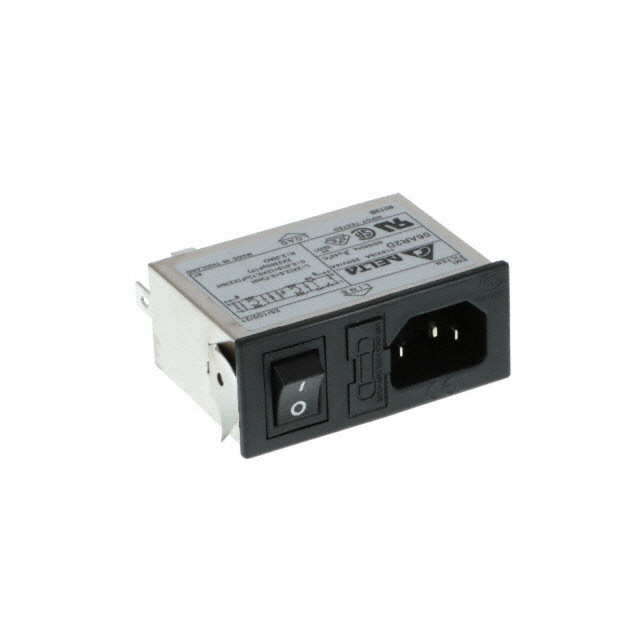

06AR2D

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	06AR2D

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	66 mm
Panel Cutout Dimensions [y]	27 mm
Panel Thickness [Max]	1.78 mm
Panel Thickness [Max]	0.07 in
Panel Thickness [Min]	0.04 in
Panel Thickness [Min]	1.02 mm
Switch Features	Switch On-Off
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Fuse Holder, Drawer	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Accomodates a Fuse	Switch Features	Filter Type	Termination	Connector Style	Connector Type	Mounting Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]
Delta Electronics 06AR2D	6 A	27 mm	66 mm	CSA, UL, VDE	Fuse Holder	0.04 in	1.02 mm	1.78 mm	0.07 in		Switch On-Off	Filtered (EMI, RFI) - Commercial	Quick Connect	IEC 320-C14	Receptacle, Male Blades - Module	Panel Mount, Snap-In	115 VAC	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
