Description
General part information
DKB300-03PCK

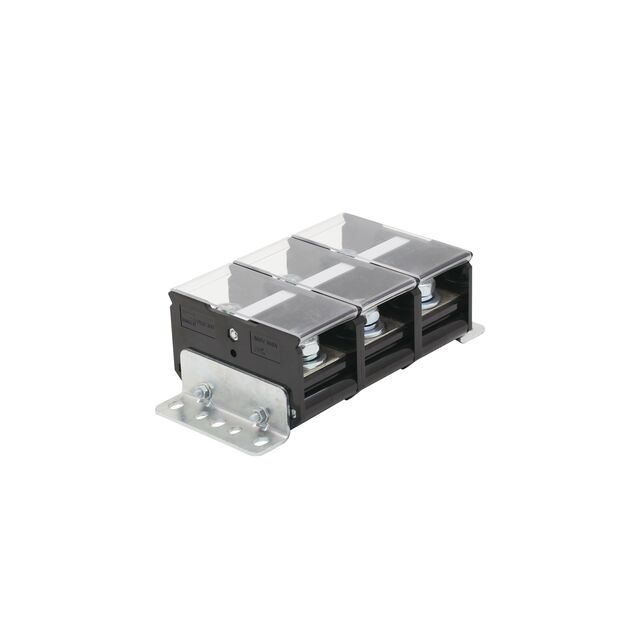

3 Circuit 1.772" (45.00mm) Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | DKB300-03PCK |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating | 380 A |
| Features | Flange, Cover |
| Material - Insulation | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 1.772 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge | 500MCM (kcmil), 3/0 AWG |
| Wire Gauge (MCM) | 500 MCM |
