Description
General part information

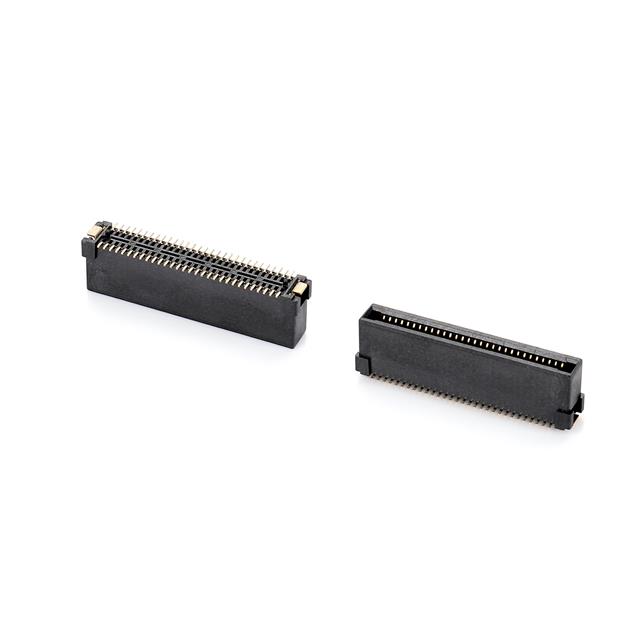

CGBC201-4009B001C1NH
80 Position Connector Plug, Floating Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | CGBC201-4009B001C1NH |
|---|---|
| Connector Type | Floating, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 µin |
| Features | Solder Retention, Pick and Place, Board Guide |
| Height Above Board | 0.307 in |
| Mated Stacking Height | 12.75 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch | 0.031 in |
