W6382-3SG-P-3DC

Active

Conxall/Switchcraft

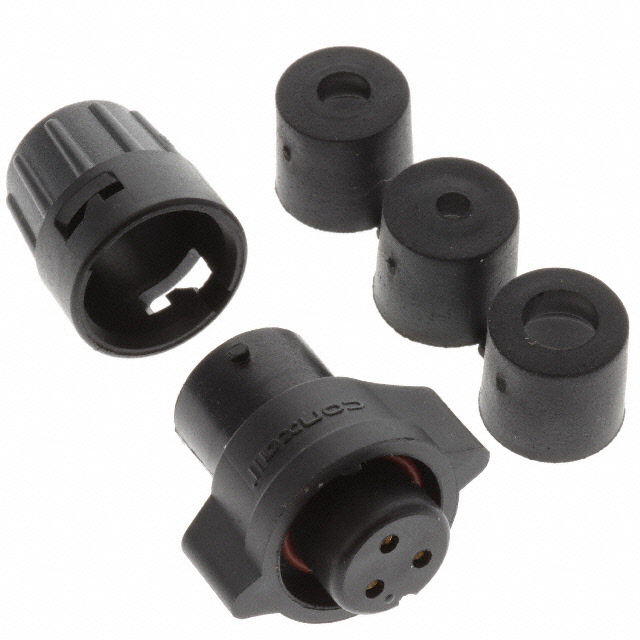

CONN PLUG FMALE 3POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

W6382-3SG-P-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.52

Description

General part information

W6382-3 Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W6382-3SG-P-3DC	W6382-3 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.21 in
Cable Opening	-	0.19 in
Cable Opening	-	4.83 mm
Cable Opening	-	5.33 mm
Cable Opening	-	6.6 - 7.11 mm
Cable Opening	-	0.26 - 0.28 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	300 VAC	300 VAC

W6382-3 Series

CONN PLUG FMALE 3POS SOLDER CUP

Part	Shielding	Insert Material	Backshell Material, Plating	Features	Applications	Contact Finish - Mating	Orientation	Fastening Type	Contact Material	Primary Material	Connector Type	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Voltage Rating	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6382-3SG-P-3DC	Unshielded	Thermoplastic	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Gold	Keyed	Bayonet Lock	Copper Alloy	Plastic	Female Sockets, Plug	Varies by Wire Gauge	IP66, IP67, IP68	85 °C	-40 °C	Black	300 VAC	Free Hanging (In-Line)
Conxall/Switchcraft W6382-3PG-P-3DC	Unshielded	Thermoplastic	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Gold	Keyed	Bayonet Lock	Copper Alloy	Plastic	Male Pins, Plug	Varies by Wire Gauge	IP66, IP67, IP68	85 °C	-40 °C	Black	300 VAC	Free Hanging (In-Line)
Conxall/Switchcraft W6382-3PG-P-519	Unshielded	Thermoplastic	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Gold	Keyed	Bayonet Lock	Copper Alloy	Plastic	Male Pins, Plug	Varies by Wire Gauge	IP66, IP67, IP68	85 °C	-40 °C	Black	300 VAC	Free Hanging (In-Line)	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft W6382-3PG-P-528	Unshielded	Thermoplastic	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Gold	Keyed	Bayonet Lock	Copper Alloy	Plastic	Male Pins, Plug	Varies by Wire Gauge	IP66, IP67, IP68	85 °C	-40 °C	Black	300 VAC	Free Hanging (In-Line)					6.6 mm, 7.11 mm	0.26 in, 0.28 in
