PE4757
ActivePasternack

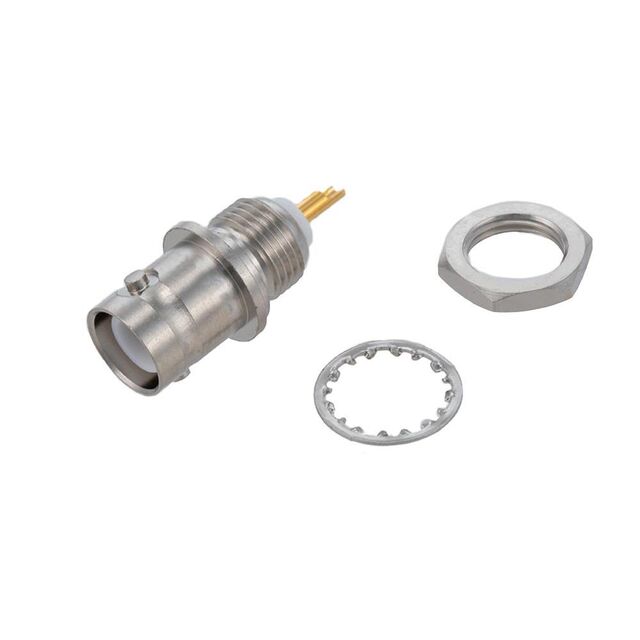

RP BNC FEMALE BULKHEAD MOUNT CON
PE4757
ActivePasternack
RP BNC FEMALE BULKHEAD MOUNT CON
Description
General part information
PE4757
RP-BNC Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4757 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-BNC |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
