AEDR-9930E-102
ActiveBroadcom Limited

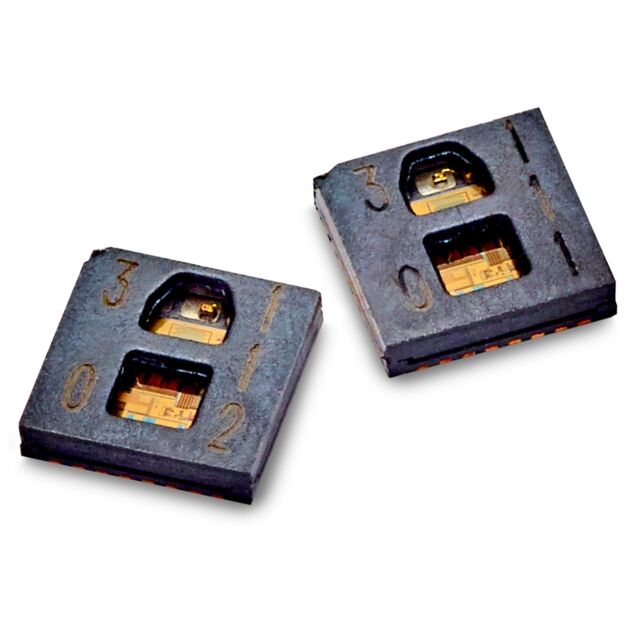

REFLECTIVE ROTARY 397LPI ENCODER
AEDR-9930E-102
ActiveBroadcom Limited
REFLECTIVE ROTARY 397LPI ENCODER
Description
General part information
AEDR-9930E-102
Rotary Encoder Incremental 397 LPI Digital
Technical Specifications
Parameters and characteristics for this part
| Specification | AEDR-9930E-102 |
|---|---|
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Surface Mount |
| Output Type | Digital |
| Pulses per Revolution | 397 LPI |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
