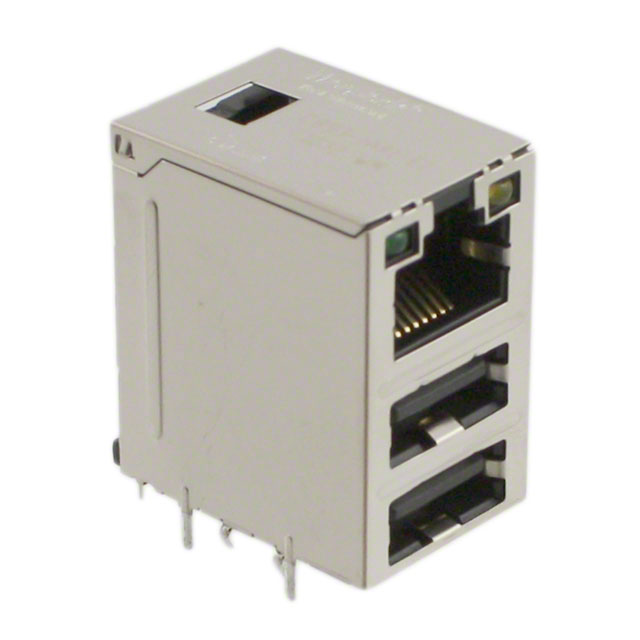

C893-1AX1-E1

Active

Bel Fuse Inc.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

Bel Fuse Inc.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	C893-1AX1-E1

Applications	10/100 Base-T
Connector Type	RJ45 with USB A, Dual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Height Above Board	1.237 in
Height Above Board	31.42 mm
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	5
Number of Ports	1
Number of Rows	1
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded
Tab Direction	Up
Termination	Solder

CONN JACK 1PORT 100 BASE-T PCB

Part	Number of Cores per Jack	Applications	Shield Material	Height Above Board	Height Above Board	Connector Type	Termination	Housing Material	Contact Finish	Shielding	Mounting Type	LED Color	Number of Rows	Orientation	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Tab Direction
Bel Fuse Inc. C893-1AX1-E1	5	10/100 Base-T	Copper Alloy	1.237 in	31.42 mm	Dual, RJ45 with USB A	Solder	Polybutylene Terephthalate (PBT)	Gold	Shielded	Through Hole	Green, Yellow	1	90 °	50 µin	1.27 µm	1	Up

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45 with USB A, DualThrough Hole 10/100 Base-T
