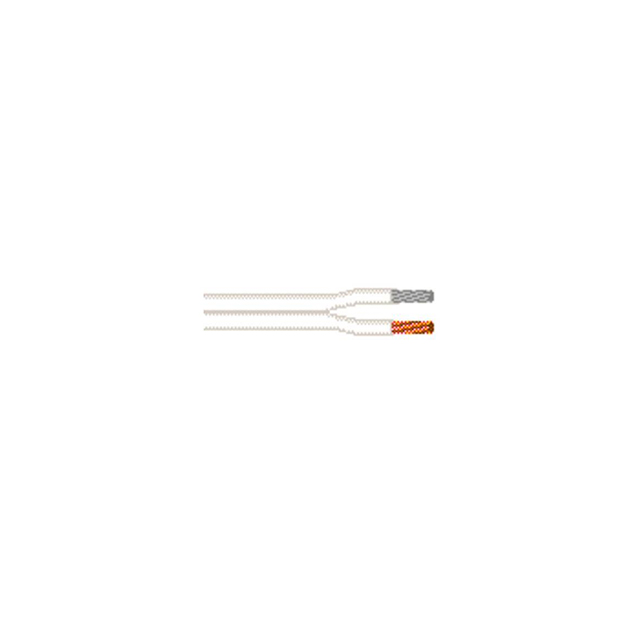

9708 368500

Active

Belden Inc.

2#18 PVC PARALLEL

Search across all available documentation for this part.

Active

Belden Inc.

2#18 PVC PARALLEL

Technical Specifications

Parameters and characteristics for this part

Specification	9708 368500

Cable Type	Speaker
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned, Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Transparent
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio
Voltage	300 V
Wire Gauge	18 AWG

Part	Voltage	Length [x]	Length [x]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Wire Gauge	Jacket (Insulation) Material
Belden Inc. 9708 368500	300 V	500 '	152.4 m	Audio	16	30 AWG	Poly-Vinyl Chloride (PVC)	2	-20 C	60 °C	Speaker	0.22 in	5.59 mm	Copper Bare Copper Tinned	Transparent	18 AWG	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.87

General part information

2 Conductor Speaker Cable Transparent 18 AWG 500.0' (152.4m)
