Description
General part information

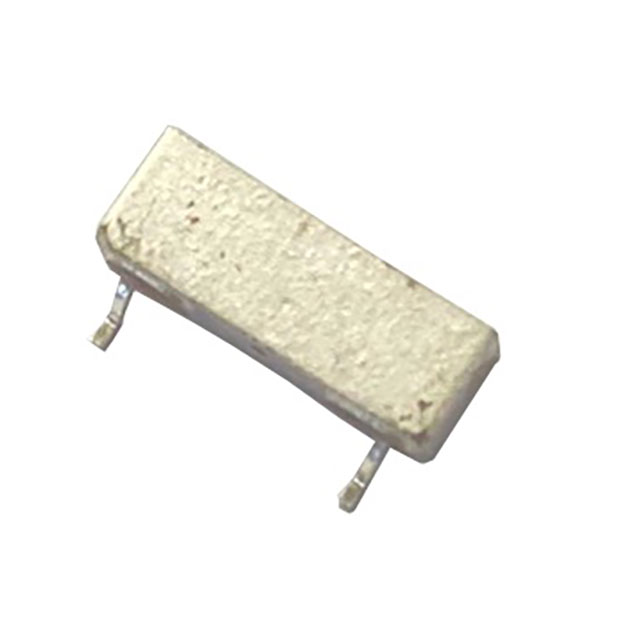

CDR4007
6.245GHz Center Band Pass Ceramic Filter 360 MHz 50Ohm 2-SMD, Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR4007 |
|---|---|
| Bandwidth | 360 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 6.245 GHz |
| Height (Max) | 0.144 in |
| Impedance | 50 Ohm |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Package / Case | Gull Wing, 2-SMD |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.138 in |
