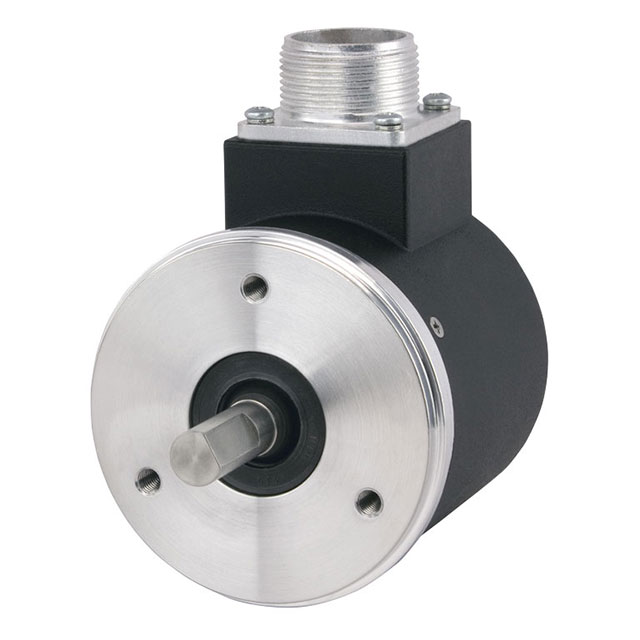

25SP-10MG-B1000B5OC-SMX-T6-S4

Active

Encoder Products Company

ENCODER ROTARY PROG 2.5" DIA 3/8

Search across all available documentation for this part.

Active

Encoder Products Company

ENCODER ROTARY PROG 2.5" DIA 3/8

Technical Specifications

Parameters and characteristics for this part

Specification	25SP-10MG-B1000B5OC-SMX-T6-S4

Actuator Type	Shaft
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Servo Mount
Orientation	User Selectable
Output Type	Open Collector
Pulses per Revolution	Programmable
Rotational Life (Cycles Min) [Min]	1.5B
Termination Style	PC Pin
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	4.75 V

Part	Output Type	Pulses per Revolution	Built in Switch	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Orientation	Detent	Termination Style	Actuator Type	Encoder Type	Rotational Life (Cycles Min) [Min]
Encoder Products Company 25SP-10MA-B1000B5OC-SMX-T6-S4	Open Collector	Programmable		Flange Mount	30 VDC	4.75 V	User Selectable		PC Pin	Shaft	Incremental	1.5B
Encoder Products Company 25SP-10MG-B1000B5OC-SMX-T6-S4	Open Collector	Programmable		Servo Mount	30 VDC	4.75 V	User Selectable		PC Pin	Shaft	Incremental	1.5B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 699.00

General part information

ENCODER ROTARY PROG 2.5" DIA 3/8
