T4133012041-000
ActiveTE Connectivity AMP Connectors

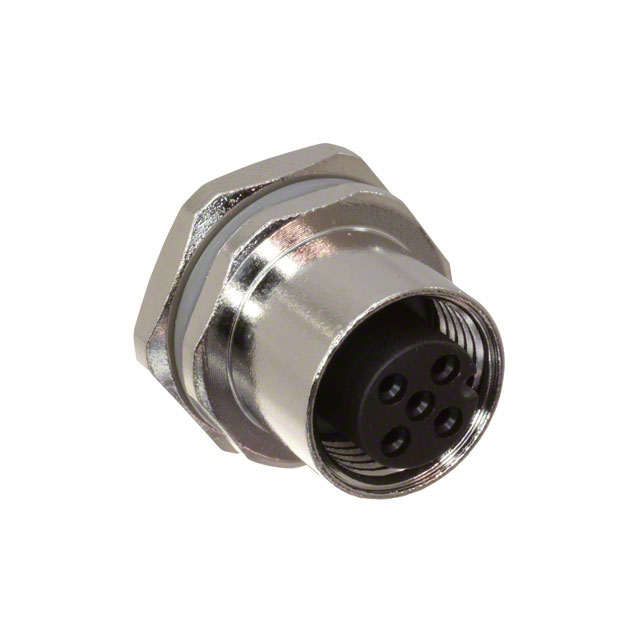

CONN PLUG FMALE 4POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4133012041-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 4POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4133012041-000 | T41330 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Receptacle, Female Sockets, Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 1.5 - 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 4 | 2 - 12 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-4 | M12-12, M12-4, M12-5, M12-2 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.59 | |
| 10 | $ 6.29 | |||
| 25 | $ 5.84 | |||
| 50 | $ 5.52 | |||
| 100 | $ 5.21 | |||
| 250 | $ 4.84 | |||
| 500 | $ 4.58 | |||
| 1000 | $ 4.33 | |||
T41330 Series
CONN RCPT FMALE 12P SOLDER CUP
| Part | Connector Type | Contact Finish - Mating | Insert Material | Voltage Rating | Shell Finish | Mounting Feature | Shell Size - Insert | Ingress Protection | Color | Shell Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Primary Material | Applications | Orientation | Shielding | Current Rating (Amps) | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4133012121-000 | Receptacle, Female Sockets | Gold | Polyamide (PA66), Nylon 6/6 | 30 VDC | Nickel | Bulkhead - Rear Side Nut | M12-12 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Copper Alloy | 85 °C | -40 °C | 12 | Metal | Industrial | A | Unshielded | 1.5 A | |||
TE Connectivity AMP Connectors T4133012041-000 | Female Sockets, Plug | Gold | Polyamide (PA66), Nylon 6/6 | 250 VDC | Nickel | Bulkhead - Rear Side Nut | M12-4 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Copper Alloy | 85 °C | -40 °C | 4 | Metal | Industrial | A | Unshielded | 4 A | UL94 V-0 | 3 µin | 0.076 µm |
TE Connectivity AMP Connectors T4133012051-000 | Female Sockets, Plug | Gold | Polyamide (PA66), Nylon 6/6 | 60 VDC | Nickel | Bulkhead - Rear Side Nut | M12-5 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Copper Alloy | 85 °C | -40 °C | Metal | Industrial | A | Unshielded | 4 A | UL94 V-0 | 3 µin | 0.076 µm | |
TE Connectivity AMP Connectors T4133012021-000 | Female Sockets, Plug | Gold | Polyamide (PA66), Nylon 6/6 | 250 VDC | Nickel | Bulkhead - Rear Side Nut | M12-2 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Copper Alloy | 85 °C | -40 °C | 2 | Metal | Industrial | A | Unshielded | 4 A | UL94 V-0 | 3 µin | 0.076 µm |
Description
General part information
T41330 Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
