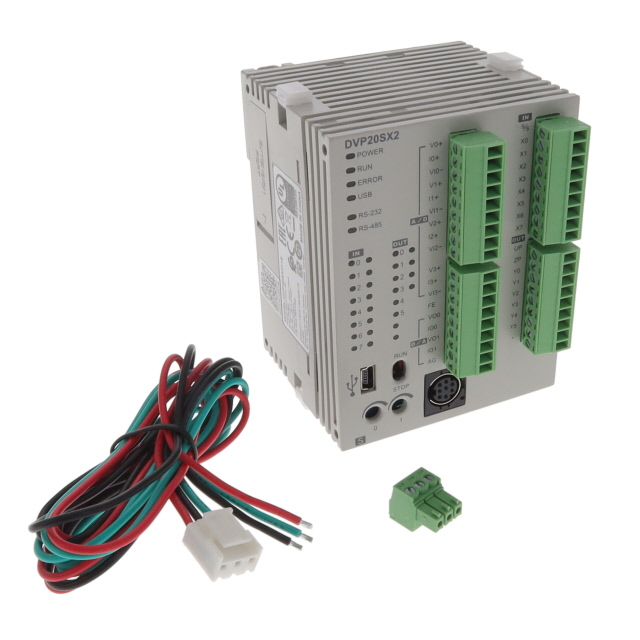

DVP20SX211S

Delta Electronics/Industrial Automation

DVP-S CPU 8DI/6DO & 4AI/2AO, 24V

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

DVP-S CPU 8DI/6DO & 4AI/2AO, 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DVP20SX211S	DVP20 Series

Approval Agency	cULus, CE	cULus, CE
Communications	RS-485, USB, RS-232	RS-485, USB, RS-232
Display Type	No Display	No Display
Expandable	True	True
Memory Size	10 kpts	10 kpts
Mounting Type	Chassis Mount, DIN Rail	Chassis Mount, DIN Rail
Number of Inputs and Type [custom]	4	4
Number of Inputs and Type [custom]	8	8
Number of Outputs and Type	-	6
Number of Outputs and Type [custom]	6	6
Number of Outputs and Type [custom]	2	2
Voltage - Supply	24 VDC	24 VDC

DVP-S CPU 8DI/6DO & 4AI/2AO, 24V

Part	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Communications	Display Type	Approval Agency	Memory Size	Mounting Type	Voltage - Supply	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]
Delta Electronics/Industrial Automation DVP20SX211S	4	8	RS-232, RS-485, USB	No Display	CE, cULus	10 kpts	Chassis Mount, DIN Rail	24 VDC	6	2
Delta Electronics/Industrial Automation DVP20SX211R	4	8	RS-232, RS-485, USB	No Display	CE, cULus	10 kpts	Chassis Mount, DIN Rail	24 VDC		2	6
Delta Electronics/Industrial Automation DVP20SX211T	4	8	RS-232, RS-485, USB	No Display	CE, cULus	10 kpts	Chassis Mount, DIN Rail	24 VDC	6	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 315.56

General part information

Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 24VDC

Technical documentation and resources
