1-969489-1
ActiveTE Connectivity AMP Connectors

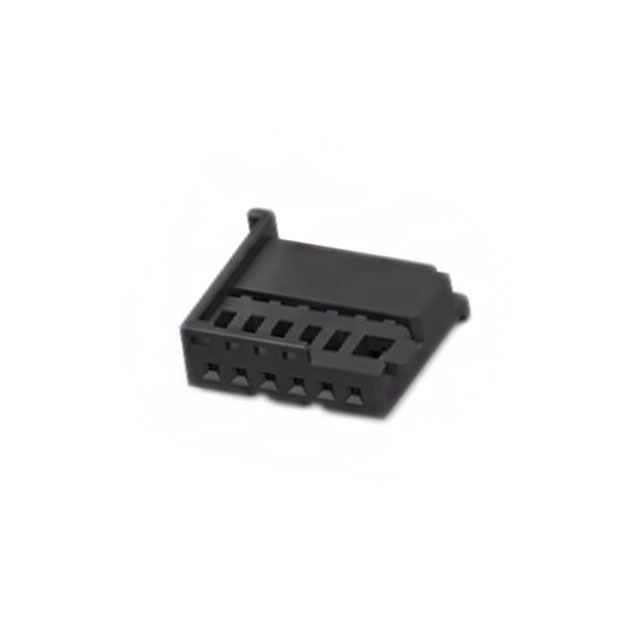

CONN RCPT HSG 6POS 2.85MM
Deep-Dive with AI
Search across all available documentation for this part.
1-969489-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 6POS 2.85MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-969489-1 | 969489 Series |
|---|---|---|
| - | - | |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.112 in | 0.112 in |
| Pitch [x] | 2.85 mm | 2.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
969489 Series
CONN RCPT HSG 6POS 2.85MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Insulation Material | Number of Rows | Color | Connector Type | Pitch [x] | Pitch [x] | Fastening Type | Number of Positions | Contact Type | Note | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-969489-1 | -40 °C | 80 C | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | 1 | Black | Receptacle | 0.112 in | 2.85 mm | Latch Lock | 6 | Female Socket | Contacts Not Included | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 1-969489-4 | ||||||||||||||
TE Connectivity AMP Connectors 1-969489-2 |
Description
General part information
969489 Series
6 Rectangular Connectors - Housings Receptacle Black 0.112" (2.85mm)
