929505-6

Active

TE Connectivity AMP Connectors

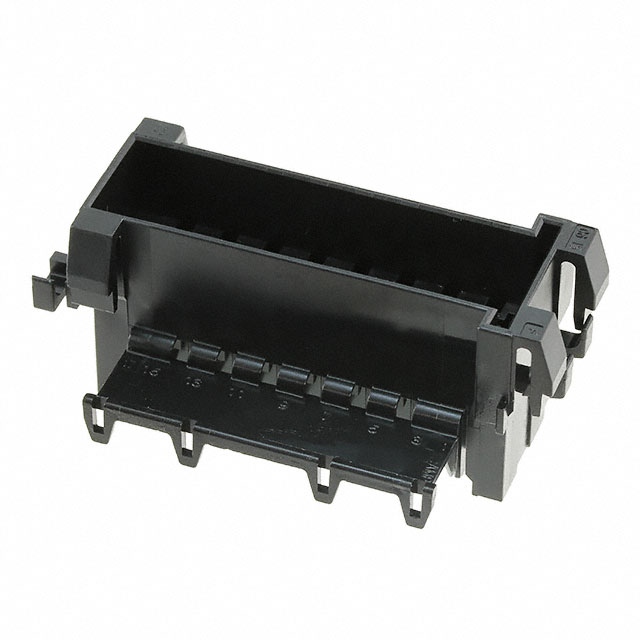

CONN PLUG HSG 18POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 18POS 5.00MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	929505-6	929505 Series

Color	Black	Natural, Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Tab	Tab
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	18	8 - 22 positions
Number of Rows	2	2
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Row Spacing	0.22 in	0.22 in
Row Spacing	5.6 mm	5.6 mm

CONN PLUG HSG 22POS 5.00MM

Part	Pitch [x]	Pitch [x]	Number of Positions	Row Spacing	Row Spacing	Fastening Type	Color	Number of Rows	Note	Connector Type	Contact Termination	Mounting Type	Contact Type	Insulation Material
TE Connectivity AMP Connectors 1-929505-7	5 mm	0.197 in	22 positions	0.22 in	5.6 mm	Locking Ramp	Natural	2	Contacts Not Included	Plug	Crimp	Free Hanging (In-Line)	Tab	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 929505-6	5 mm	0.197 in	18	0.22 in	5.6 mm	Locking Ramp	Black	2	Contacts Not Included	Plug	Crimp	Free Hanging (In-Line)	Tab	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 929505-7	5 mm	0.197 in	22 positions	0.22 in	5.6 mm	Locking Ramp	Black	2	Contacts Not Included	Plug	Crimp	Free Hanging (In-Line)	Tab	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 929505-3	5 mm	0.197 in	8	0.22 in	5.6 mm	Locking Ramp	Black	2	Contacts Not Included	Plug	Crimp	Free Hanging (In-Line)	Tab	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 929505-5	5 mm	0.197 in	14	0.22 in	5.6 mm	Locking Ramp	Black	2	Contacts Not Included	Plug	Crimp	Free Hanging (In-Line)	Tab	Polybutylene Terephthalate (PBT)
