796911-2

Obsolete

TE Connectivity AMP Connectors

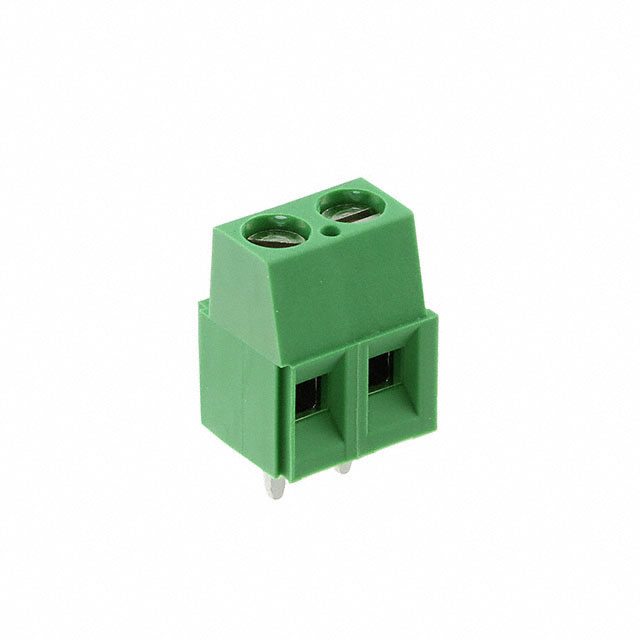

TERM BLK 2P SIDE ENT 5.08MM PCB

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

TERM BLK 2P SIDE ENT 5.08MM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796911-2	796911 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	2	2 - 4
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLK 2P SIDE ENT 5.08MM PCB

Part	Positions Per Level	Features	Wire Termination	Screw Material - Plating	Mating Orientation	Contact Material - Plating [custom]	Pitch [x]	Pitch [x]	Number of Levels	Clamp Material - Plating	Mounting Type	Current	Wire Gauge [Max]	Wire Gauge [Min]	Color	Screw Thread	Voltage
TE Connectivity AMP Connectors 796911-2	2	Interlocking (Side)	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	0.2 in	5.08 mm	1	Brass - Nickel Plated	Through Hole	17.5 A	30 AWG	12 AWG	Green	M3	300 V
TE Connectivity AMP Connectors 796911-4	4	Interlocking (Side)	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	0.2 in	5.08 mm	1	Brass - Nickel Plated	Through Hole	17.5 A	30 AWG	12 AWG	Green	M3	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
