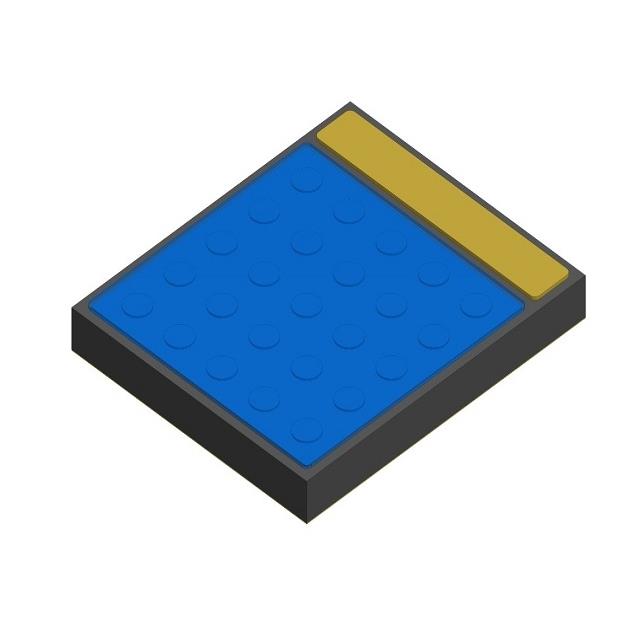

LA UZ403P1
ActiveLight-Avenue
UV LED DIE, 325NM,45MW,350MA,100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LA UZ403P1
ActiveLight-Avenue
UV LED DIE, 325NM,45MW,350MA,100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LA UZ403P1 |
|---|---|
| Current - DC Forward (If) (Max) | 350 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Top View |
| Package / Case | Die |
| Radiant Intensity (Ie) Min @ If | 45 mW/cm˛ |
| Type | Ultraviolet (UV) |
| Voltage - Forward (Vf) (Typ) | 5.2 V |
| Wavelength | 325 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 150.00 | |
| 200 | $ 147.00 | |||
| 300 | $ 144.06 | |||
| 400 | $ 141.18 | |||
| 500 | $ 138.36 | |||
| 1000 | $ 80.00 | |||
Description
General part information
LA UZ403P1
Ultraviolet (UV) Emitter 325nm 5.2V 350mA 45mW/cm˛ @ 350mA (Typ) Die
