4616-1

Active

Vector Electronics

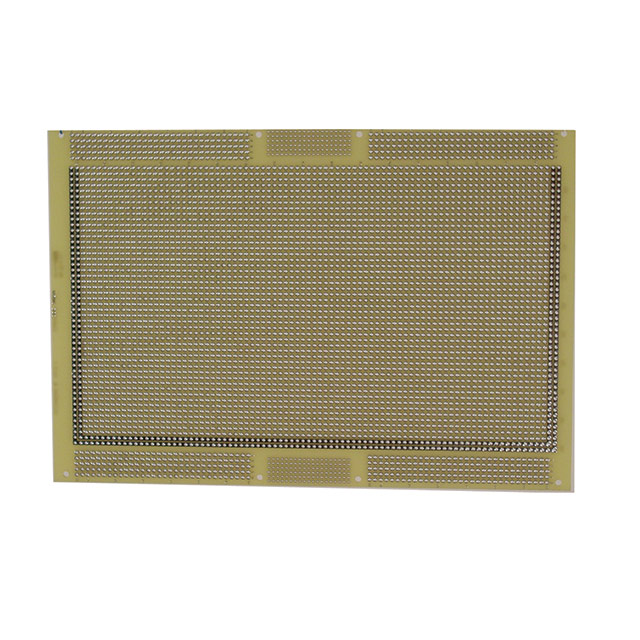

PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM

Search across all available documentation for this part.

Active

Vector Electronics

PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM

Technical Specifications

Parameters and characteristics for this part

PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM

Part	Pitch [x]	Pitch [x]	Hole Diameter	Hole Diameter	Board Thickness	Board Thickness	Board Thickness	Proto Board Type	Circuit Pattern	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Plating
Vector Electronics 4616-1	2.54 mm	0.1 in	0.042 " (inches)	1.07 mm	0.062 in	0.0625 in	1.57 mm	Plugboard, Hard Metric	Pad Per Hole (Round)	233.4 mm	160 mm	6.3 "	9.19 "	Plated Through Hole (PTH)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plugboard, Hard Metric Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm)

Technical documentation and resources
