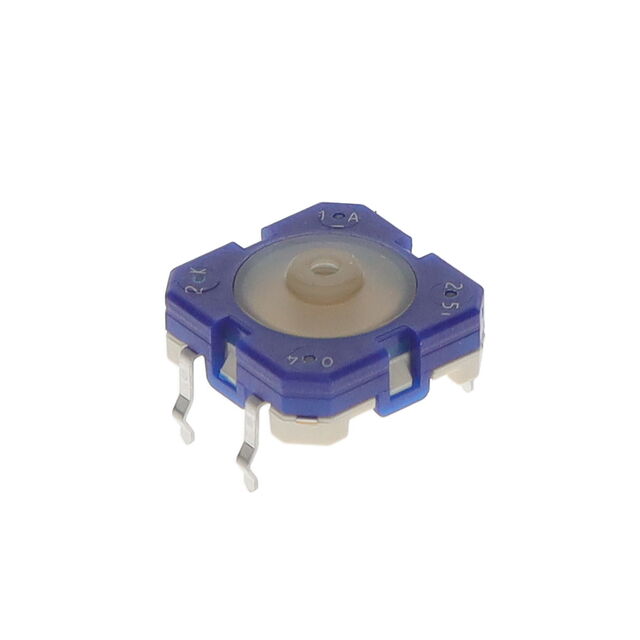

1.14.012.501/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.14.012.501/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.14.012.501/0000	1.14.012 Series

	-	-
Actuator Height off PCB, Vertical	4.96 mm	4.96 mm
Actuator Length, Right Angle	-	13 mm
Actuator Orientation	Top Actuated	Side Actuated, Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	35 VAC/DC, 0.1 A	0.1 - 35 VAC/DC
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Mechanical Life	1000000 Cycles	65000 - 1000000 Cycles
Mounting Type	Through Hole	Through Hole, Right Angle, Surface Mount, Through Hole
Operating Force	816 gf	816 - 1020 gf
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	12 mm	12 mm
Outline [y]	12 mm	12 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	-	0.55 - 0.73 mm
Switch Travel	-	0.66 mm
Switch Travel [custom]	0.61 mm	0.61 mm
Termination Style	PC Pin	PC Pin, SMD (SMT) Tab

1.14.012 Series

SWITCH TACTILE

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length, Right Angle [x]	Actuator Orientation	Illumination	Mounting Type	Operating Force	Ingress Protection	Actuator Type	Contact Rating @ Voltage	Switch Function	Circuit	Mechanical Life	Switch Travel [custom]	Actuator Height off PCB, Vertical	Outline [y]	Outline [x]	Switch Travel	Switch Travel [custom]
RAFI USA 1.14.012.506/0000
RAFI USA 1.14.012.926/0000
RAFI USA 1.14.012.505/0000	PC Pin	90 °C	-40 °C	13 mm	Side Actuated	Non-Illuminated	Through Hole, Right Angle	816 gf	IP54 - Dust Protected, Water Resistant	Standard	0.1 A, 35 VAC/DC	Off-Mom	SPST-NO	1000000 Cycles	0.61 mm
RAFI USA 1.14.012.916/0000	SMD (SMT) Tab	90 °C	-40 °C		Top Actuated	Non-Illuminated	Surface Mount	1020 gf	IP54 - Dust Protected, Water Resistant	Standard	0.1 A, 35 VAC/DC	Off-Mom	SPST-NO	1000000 Cycles		4.96 mm	12 mm	12 mm	0.7 mm
RAFI USA 1.14.012.601/0000
RAFI USA 1.14.012.501/0000	PC Pin	90 °C	-40 °C		Top Actuated	Non-Illuminated	Through Hole	816 gf	IP54 - Dust Protected, Water Resistant	Standard	0.1 A, 35 VAC/DC	Off-Mom	SPST-NO	1000000 Cycles	0.61 mm	4.96 mm	12 mm	12 mm
RAFI USA 1.14.012.603/0000	SMD (SMT) Tab	90 °C	-40 °C		Top Actuated	Non-Illuminated	Surface Mount	816 gf	IP54 - Dust Protected, Water Resistant	Standard	0.1 A, 35 VAC/DC	Off-Mom	SPST-NO	1000000 Cycles		4.96 mm	12 mm	12 mm	0.55 mm
RAFI USA 1.14.012.927/0000	PC Pin	90 °C	-40 °C	13 mm	Side Actuated	Non-Illuminated	Through Hole, Right Angle		IP54 - Dust Protected, Water Resistant	Standard	0.1 A, 35 VAC/DC	Off-Mom	SPST-NO	200000 Cycles					0.73 mm
RAFI USA 1.14.012.803/0000	SMD (SMT) Tab	90 °C	-40 °C		Top Actuated	Non-Illuminated	Surface Mount	816 gf	IP54 - Dust Protected, Water Resistant	Standard	0.1 A, 35 VAC/DC	Off-Mom	SPST-NO	1000000 Cycles		4.96 mm	12 mm	12 mm		0.66 mm
RAFI USA 1.14.012.801/0000

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.05
		10	$ 2.48
		25	$ 2.28
		100	$ 2.00
		250	$ 1.83
		500	$ 1.72
		1000	$ 1.60
		2500	$ 1.47
		5000	$ 1.37

Description

General part information

1.14.012 Series

Tactile Switch SPST-NO Top Actuated Through Hole
