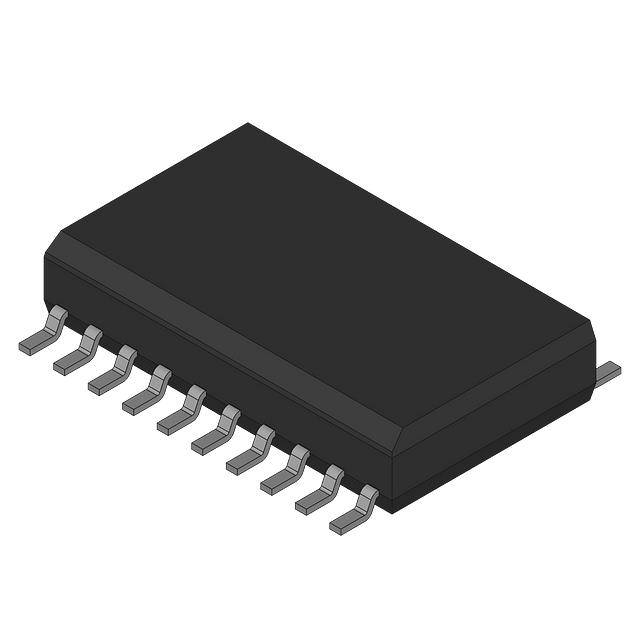

CD74HC573M
ActiveHarris Corporation
IC D-TYPE TRANSP SGL 8:8 20SOIC
Deep-Dive with AI
Search across all available documentation for this part.
CD74HC573M
ActiveHarris Corporation
IC D-TYPE TRANSP SGL 8:8 20SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CD74HC573M |
|---|---|
| Circuit | 8:8 |
| Current - Output High, Low | 7.8 mA, 7.8 mA |
| Delay Time - Propagation | 30 ns |
| Independent Circuits | 1 |
| Logic Type | D-Type Transparent Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Tri-State |
| Package / Case | 7.5 mm, 0.295 in |
| Package / Case | 20-SOIC |
| Supplier Device Package | 20-SOIC |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.97 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.82 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.56 | |||
| 717 | $ 0.42 | |||
| 1000 | $ 0.44 | |||
74HC573 Series
IC D-TYPE TRANSP SGL 8:8 20SOIC
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Delay Time - Propagation | Circuit | Current - Output High, Low | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Logic Type | Independent Circuits | Mounting Type | Output Type | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harris Corporation CD74HC573M | 2 V | 6 V | 30 ns | 8:8 | 7.8 mA, 7.8 mA | -55 °C | 125 °C | 20-SOIC | D-Type Transparent Latch | 1 | Surface Mount | Tri-State | 0.295 in, 7.5 mm | 20-SOIC |
Description
General part information
74HC573 Series
D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SOIC
Documents
Technical documentation and resources
No documents available
