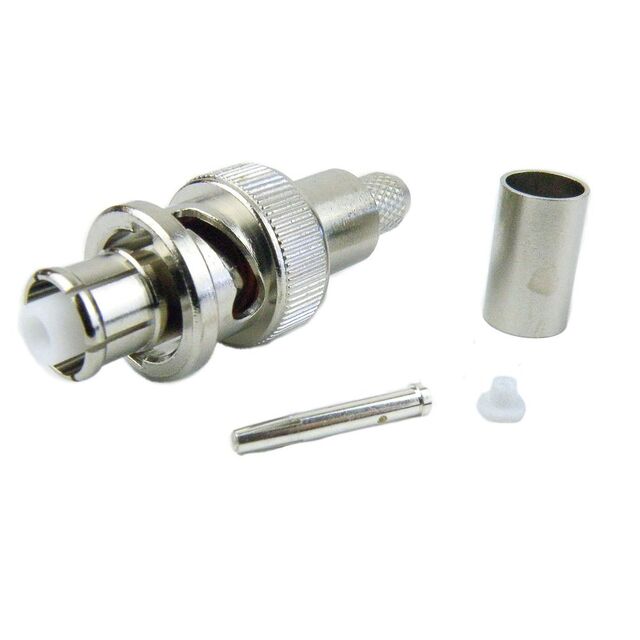

SC6517
ObsoleteFairview Microwave
CONN PLUG CRIMP/SOLDER SHV
SC6517
ObsoleteFairview Microwave
CONN PLUG CRIMP/SOLDER SHV
Description
General part information
SC6517
SHV Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SC6517 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | SHV |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 50 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Crimp |
