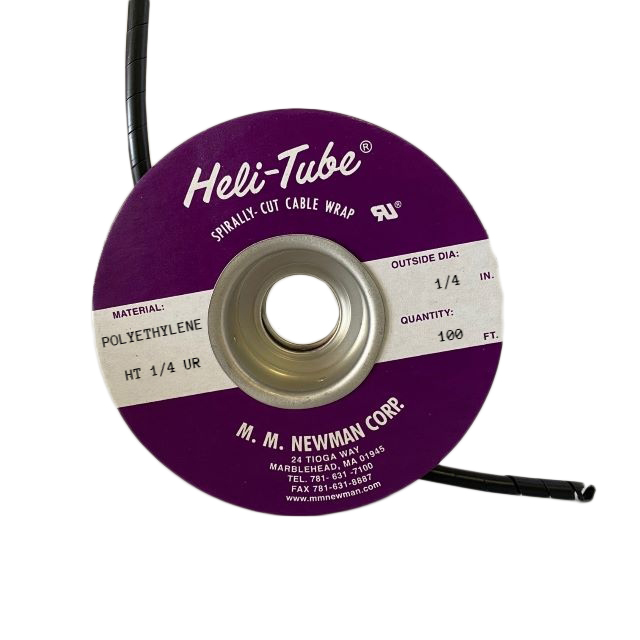

HT 1/4 UR

Active

MM Newman Corporation

SPIRAL WRAP 0.16" X 100' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1/4 UR

Active

MM Newman Corporation

SPIRAL WRAP 0.16" X 100' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 50.18
		10	$ 40.74

Description

General part information

HT 1/4 Series

Spiral Wrap 0.250" (6.35mm) X 100' (30.48m) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 1/4 UR	HT 1/4 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Black	Blue, Natural, Purple, White, Black
Diameter - Inside, Expanded [diameter]	2 in	2 in
Diameter - Inside, Expanded [diameter]	50.8 mm	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	0.16 in	0.16 - 0.2 in
Diameter - Inside, Non-Expanded [diameter]	4.06 mm	4.06 - 5.08 mm
Diameter - Outside, Non-Expanded [diameter]	6.35 mm	6.35 mm
Diameter - Outside, Non-Expanded [diameter]	0.25 in	0.25 in
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0, UL VW-1, UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 260 °C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	1.14 mm	1.14 mm
Wall Thickness	0.045 in	0.045 in
Wall Thickness	-	0.025 - 0.03 in
Wall Thickness	-	0.64 - 0.76 mm

HT 1/4 Series

SPIRAL WRAP 0.16" X 100' BLUE

Part	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Color	Type Attributes	Wall Thickness	Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Abrasion Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Heat Protection	Environment Protection
MM Newman Corporation HT 1/4 C BLU	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap	Blue	Harness	1.14 mm	0.045 in	-60 °C	88 °C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in
MM Newman Corporation HT 1/4 N	Chemical Resistant, Self Extinguishing, Solvent Resistant	0.2 in	5.08 mm	Spiral Wrap	Natural	Harness			-40 °C	121 °C	100 ft	30.48 m	Nylon	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in	0.025 in	0.64 mm
MM Newman Corporation HT 1/4 C PU	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap	Purple	Harness	1.14 mm	0.045 in	-60 °C	88 °C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in
MM Newman Corporation HT 1/4 C OR	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap		Harness	1.14 mm	0.045 in	-60 °C	88 °C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in
MM Newman Corporation HT 1/4 T	Chemical Resistant, Solvent Resistant	0.187 in	4.75 mm	Spiral Wrap	Natural	Harness			-268 °C	260 ░C	100 ft	30.48 m	Polytetrafluoroethylene (PTFE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in	0.03 in	0.76 mm	UL VW-1, UL94 V-0	Fire Resistant	UV Resistant
MM Newman Corporation HT 1/4 C	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap	Natural	Harness	1.14 mm	0.045 in	-60 °C	88 °C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in
MM Newman Corporation HT 1/4 R	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap	White	Harness	1.14 mm	0.045 in	-20 C	80 C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in			UL94 V-2, UL1441	Fire Resistant
MM Newman Corporation HT 1/4 N-B	Chemical Resistant, Self Extinguishing, Solvent Resistant	0.2 in	5.08 mm	Spiral Wrap	Black	Harness			-40 °C	121 °C	100 ft	30.48 m	Nylon	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in	0.025 in	0.64 mm			UV Resistant
MM Newman Corporation HT 1/4 UR	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap	Black	Harness	1.14 mm	0.045 in	-60 °C	88 °C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in
MM Newman Corporation HT 1/4 R-B	Chemical Resistant, Solvent Resistant	0.16 in	4.06 mm	Spiral Wrap	Black	Harness	1.14 mm	0.045 in	-20 C	80 C	100 ft	30.48 m	Polyethylene (PE)	2 in	50.8 mm	Abrasion Resistant	6.35 mm	0.25 in			UL94 V-2, UL1441	Fire Resistant
