796949-6

Active

TE Connectivity AMP Connectors

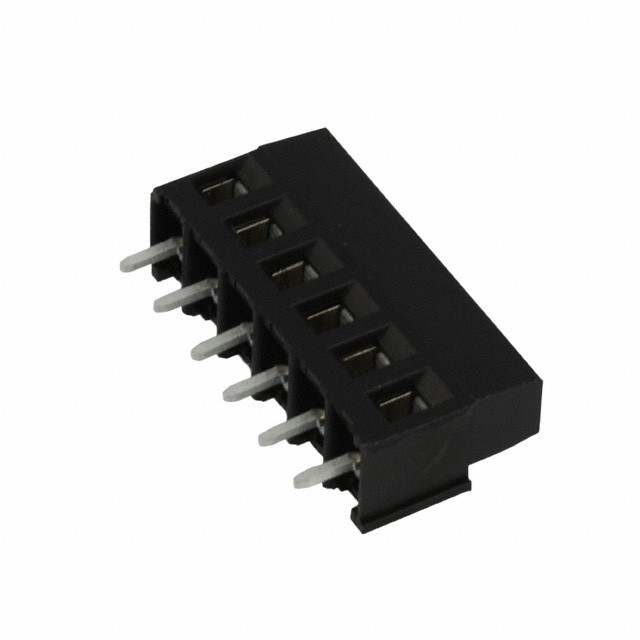

TERM BLK 6P SIDE ENT 5.08MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796949-6

Active

TE Connectivity AMP Connectors

TERM BLK 6P SIDE ENT 5.08MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796949-6	796949 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Black	Black
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side), Positions Stamped
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	6	3 - 14
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

796949 Series

TERM BLK 8P SIDE ENT 5.08MM PCB

Part	Clamp Material - Plating	Mounting Type	Pitch [x]	Pitch [x]	Number of Levels	Contact Material - Plating [custom]	Mating Orientation	Screw Thread	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Positions Per Level	Color	Current	Screw Material - Plating	Features	Voltage
TE Connectivity AMP Connectors 2-796949-8	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	8	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side), Positions Stamped	300 V
TE Connectivity AMP Connectors 796949-6	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	6	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-7	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	7	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 1-796949-4	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	14	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-5	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	5	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-3	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	3	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-8	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	8	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.56
		10	$ 3.78
		25	$ 3.51
		50	$ 3.31
		100	$ 3.13
		250	$ 2.91
		500	$ 2.75
		1000	$ 2.60

Description

General part information

796949 Series

6 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
