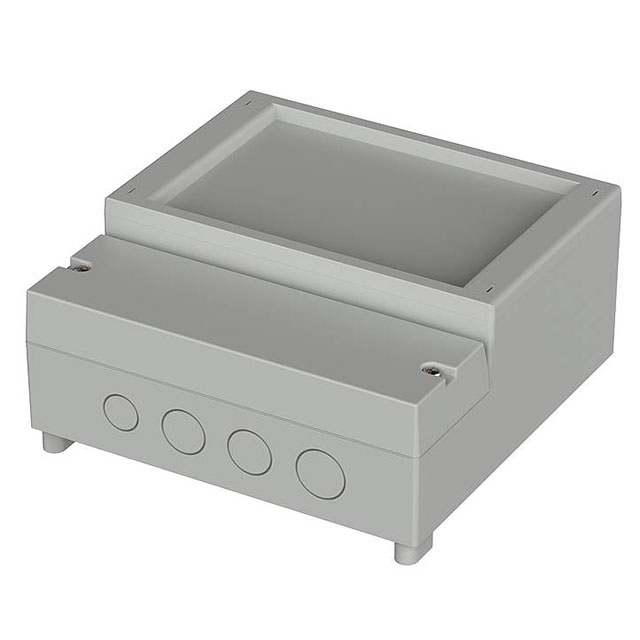

RCP 160 F
ActiveBopla Enclosures
HOUSING ABS GRAY 6.34"L X 6.54"W
RCP 160 F
ActiveBopla Enclosures
HOUSING ABS GRAY 6.34"L X 6.54"W
Description
General part information
RCP 160 F
Housing Plastic, ABS Gray Cover Included 6.339" L x 6.535" W (161.00mm x 166.00mm) X 2.835" (72.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | RCP 160 F |
|---|---|
| Area (L x W) | 41.4 in² |
| Color | Gray |
| Container Type | Housing |
| Design | Cover Included |
| Features | PCB Supports, Card Guides |
| Height | 2.835 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | IP65 |
| Size / Dimension Length | 6.339 in |
| Size / Dimension Width | 6.535 in |
| Thickness | 0.118 in |
| Weight | 1 lbs |
