FSG.0B.304.CLAD52

Active

LEMO

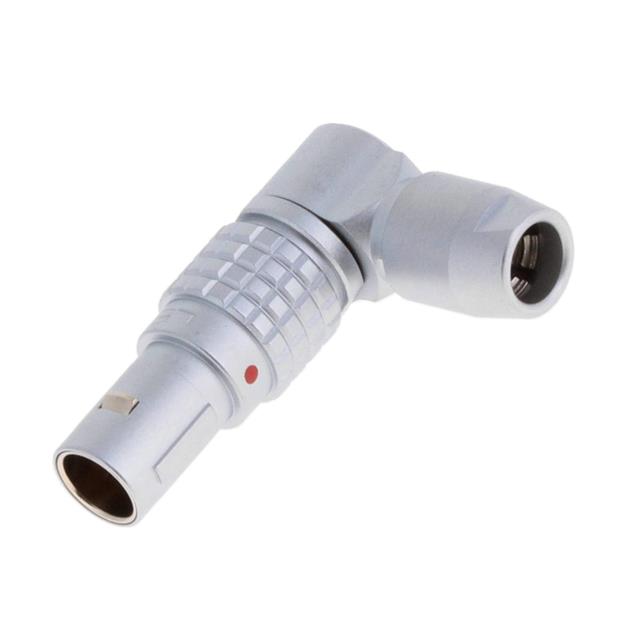

CONN PLUG FEMALE 4P RA SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FEMALE 4P RA SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FSG.0B.304.CLAD52	FSG.0B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	7 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	4	2 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 304
Shielding	Shielded	Shielded

CONN PLUG FEMALE 4P RA SLDR CUP

Part	Shell Size - Insert	Ingress Protection	Current Rating (Amps)	Primary Material	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Fastening Type	Orientation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Material Flammability Rating	Mounting Type	Shell Material	Backshell Material, Plating	Insert Material	Features	Shell Finish	Connector Type
LEMO FSG.0B.304.CLAD52	304	IP50	7 A	Metal	Shielded	0.165 in, 0.205 in	4.2 mm	5.2 mm	Gold	Detent Lock, Push-Pull	G	4	-55 °C	200 °C	Silver	Brass	UL94 V-0	Free Hanging (In-Line), Right Angle	Brass	Brass, Chrome	Polyetheretherketone (PEEK)	Backshell	Chrome	Male Pins, Plug
LEMO FSG.0B.302.CLAD52	302	IP50	10 A	Metal	Shielded	0.165 in, 0.205 in	4.2 mm	5.2 mm	Gold	Detent Lock, Push-Pull	G	2	-55 °C	200 °C	Silver	Brass	UL94 V-0	Free Hanging (In-Line), Right Angle	Brass	Brass, Chrome	Polyetheretherketone (PEEK)	Backshell	Chrome	Male Pins, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Solder Cup
