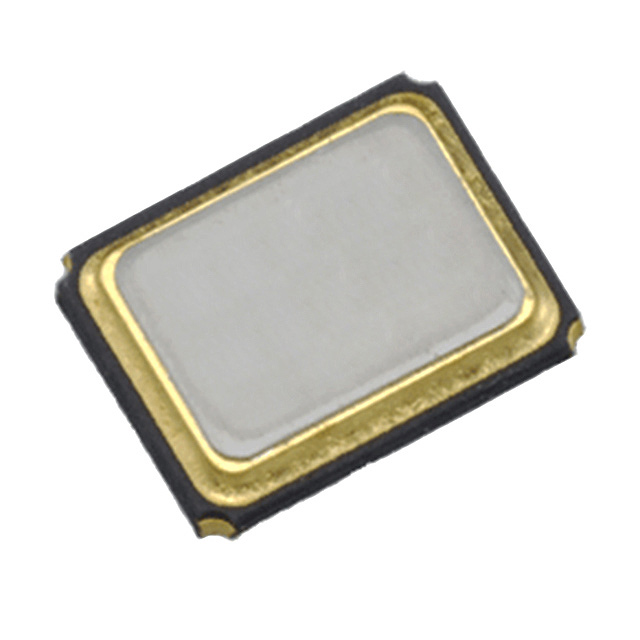

FA-128 27.12M-A0AANNG50RE3

Active

EPSON

FA-128 27.12M-A0AANNG50RE3: XTL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FA-128 27.12M-A0AANNG50RE3

Active

EPSON

FA-128 27.12M-A0AANNG50RE3: XTL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA-128 27.12M-A0AANNG50RE3	FA-128 Series

ESR (Equivalent Series Resistance)	60 Ohms	50 - 100 Ohms
Frequency	27.12 MHz	20 - 49.152 MHz
Frequency Stability	-	10 - 50 ppm
Frequency Tolerance	-	10 - 50 ppm
Height - Seated (Max) [Max] [z]	0.5 mm	0.5 mm
Height - Seated (Max) [Max] [z]	0.02 "	0.02 "
Load Capacitance	-	5 - 10 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	-	4-SMD (2x1.6)
Type	MHz Crystal	MHz Crystal

FA-128 Series

FA-128 38.4000MF20X-K3: MINI XTL

Part	ESR (Equivalent Series Resistance)	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Type	Operating Mode	Frequency Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Load Capacitance
EPSON FA-128 38.4000MF20X-K3	60 Ohms	38.4 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental	20 ppm	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead
EPSON FA-128 32.00M-A0AAAAU40RE5	60 Ohms	32 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead
EPSON FA-128 32.0000MF20X-E0	60 Ohms	32 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental	20 ppm	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead
EPSON FA-128 20.00M-A0AAYYG80RE3	100 Ohms	20 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	8 pF
EPSON FA-128 39.00M-80AANNH60REB	60 Ohms	39 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	8 pF
EPSON FA-128 48.0000MF15X-AG	60 Ohms	48 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental	15 ppm	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead
EPSON FA-128 25.00M-J0YYYYG50REB	80 Ohm	25 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead
EPSON FA-128 25.0000M-W	80 Ohm	25 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead
EPSON FA-128 38.40M-85AALHH50RE5	60 Ohms	38.4 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	8.5 pF
EPSON FA-128 26.00M-80AACCN60RE0	60 Ohms	26 MHz	0.5 mm	0.02 "	Surface Mount	MHz Crystal	Fundamental		2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	8 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 0.81

Description

General part information

FA-128 Series

27.12 MHz Crystal 60 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources
