QF3DFX-DK

Unknown

Quickfilter Technologies LLC

KIT DEV FOR QF3DFX

Search across all available documentation for this part.

Unknown

Quickfilter Technologies LLC

KIT DEV FOR QF3DFX

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QF3DFX-DK	QF3DFX Series

Applications	-	Consumer Audio
Function	Audio Processing	Audio Signal Processor, Audio Processing
Interface	-	SPI, I2S, I2C
Mounting Type	-	Surface Mount
Number of Channels	-	3
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	24-VFQFN Exposed Pad
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	24-VQFN-EP (4x4)
Type	Audio	Audio
Utilized IC / Part	QF3DFX	QF3DFX
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.62 V

PROFOUND SOUND AUDIO PROCESSOR

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Number of Channels [custom]	Function	Interface	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Utilized IC / Part	Supplied Contents
Quickfilter Technologies LLC QF3DFXAQN000T	3.6 V	1.62 V	24-VFQFN Exposed Pad	3	Audio Signal Processor	I2C, I2S, SPI	Consumer Audio	Surface Mount	85 °C	-40 °C	24-VQFN-EP (4x4)
Quickfilter Technologies LLC QF3DFX-DK					Audio Processing							Audio	QF3DFX	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 232.83

General part information

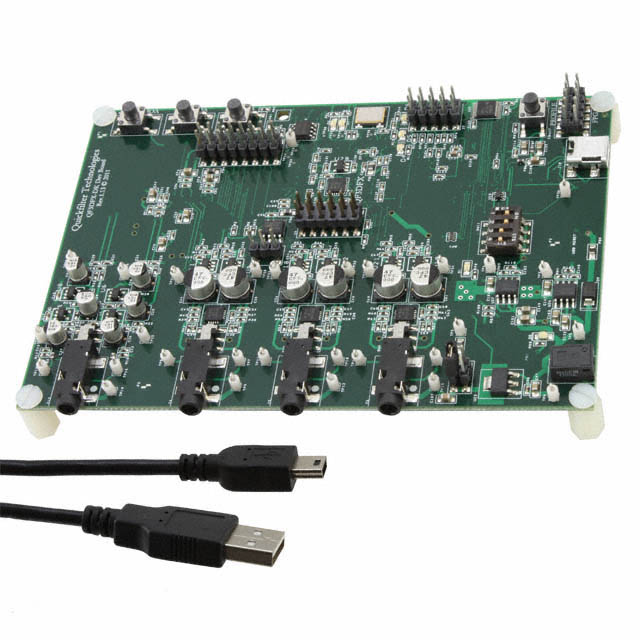

QF3DFX Audio Processing Audio Evaluation Board
