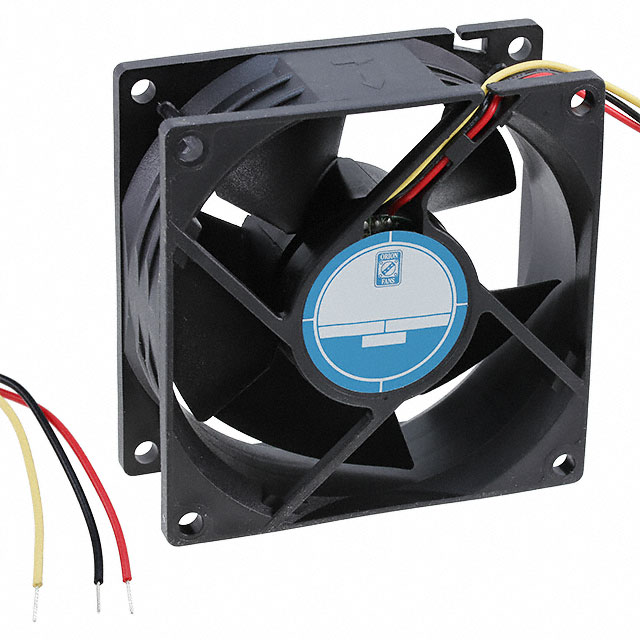

OD8032-12HB01A

Active

Orion Fans

FAN AXIAL 80.5X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD8032-12HB01A

Active

Orion Fans

FAN AXIAL 80.5X32MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD8032-12HB01A

Air Flow	1.4 m³/min
Air Flow	50 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.55 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	40 dB(A)
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	3800 RPM
Size / Dimension [x]	80.5 mm
Size / Dimension [y]	80.5 mm
Static Pressure	107.1 Pa
Static Pressure	0.43 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	17 VDC
Voltage Range [Min]	8 VDC
Width [y]	32 mm

OD8032 Series

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Fan Type	Approval Agency	Width [y]	Material - Blade	Voltage - Rated [custom]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Air Flow	Air Flow	RPM	Current Rating (Amps)	Noise	Static Pressure	Static Pressure	Features	Air Flow	Ingress Protection	Power (Watts)	Weight	Weight
Orion Fans OD8032-48HHB	60000 Hrs	24 VDC	56 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	80 C	80 °C	-20 °C	-20 C	2 Wire Leads	Ball	80.5 mm	80.5 mm
Orion Fans OD8032-12LB	60000 Hrs	8 VDC	17 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		80 C	80 °C	-20 °C	-20 C	2 Wire Leads	Ball	80.5 mm	80.5 mm	12 VDC	40 CFM	1.12 mł/min	3000 RPM	0.35 A	31 dB(A)	49.8 Pa	0.2 in H2O
Orion Fans OD8032-12MB01A	60000 Hrs	8 VDC	17 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		80 C	80 °C	-20 °C	-20 C	3 Wire Leads	Ball	80.5 mm	80.5 mm	12 VDC	44 CFM	1.23 m³/min	3400 RPM	450 mA	36 dB	69.7 Pa	0.28 in H2O	Speed Sensor (Tach)
Orion Fans OD8032-48HB01A	60000 Hrs	24 VDC	56 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	80 C	80 °C	-20 °C	-20 C	3 Wire Leads	Ball	80.5 mm	80.5 mm			50 CFM	3800 RPM		40 dB(A)	107.1 Pa	0.43 in H2O	Speed Sensor (Tach)	1.4 m³/min
Orion Fans OD8032-12HB	60000 Hrs	8 VDC	17 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		80 C	80 °C	-20 °C	-20 C	2 Wire Leads	Ball	80.5 mm	80.5 mm	12 VDC		50 CFM	3800 RPM	0.55 A	40 dB(A)	107.1 Pa	0.43 in H2O		1.4 m³/min
Orion Fans OD8032-12LBIP68	70000 Hrs				Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT)		70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	Ball	80 mm	80 mm	12 VDC	60.4 CFM	1.69 m³/min	4800 RPM	400 mA	45 dB(A)	112.1 Pa	0.45 in H2O	Auto Restart		IP68 - Dust Tight Waterproof	4.8 W	118.39 g	0.261 lb
Orion Fans OD8032-48LB02A	60000 Hrs	24 VDC	56 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	80 C	80 °C	-20 °C	-20 C	3 Wire Leads	Ball	80.5 mm	80.5 mm		40 CFM	1.12 mł/min	3000 RPM		31 dB(A)	49.8 Pa	0.2 in H2O	Locked Rotor Sensor
Orion Fans OD8032-24HBIP69K	70000 Hrs				Tubeaxial	CE cURus TUV UR	32 mm	Polybutylene Terephthalate (PBT)		65 °C	65 °C	-20 °C	-20 C	2 Wire Leads	Ball	80 mm	80 mm	24 VDC	77 CFM	2.16 m³/min	6000 RPM	0.33 A	50 dB(A)	181.8 Pa	0.73 in H2O	Auto Restart		IP69K	7.8 W
Orion Fans OD8032-12HHB01A	70000 Hrs	7 V	13.2 VDC		Tubeaxial	CE cURus	32 mm	Polybutylene Terephthalate (PBT)		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	Ball	80 mm	80 mm	12 VDC	55.4 CFM	1.55 m³/min	4200 RPM	0.23 A	44 dB	79.7 Pa	0.32 in H2O	Auto Restart Speed Sensor (Tach)			4.56 W
Orion Fans OD8032-48HB02A	60000 Hrs	24 VDC	56 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Tubeaxial	cURus TUV	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	80 C	80 °C	-20 °C	-20 C	3 Wire Leads	Ball	80.5 mm	80.5 mm			50 CFM	3800 RPM		40 dB(A)	107.1 Pa	0.43 in H2O	Locked Rotor Sensor	1.4 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 11.73

Description

General part information

OD8032 Series

Fan Tubeaxial 12VDC Square - 80.5mm L x 80.5mm H Ball 50.0 CFM (1.40m³/min) 3 Wire Leads

Documents

Technical documentation and resources

No documents available
