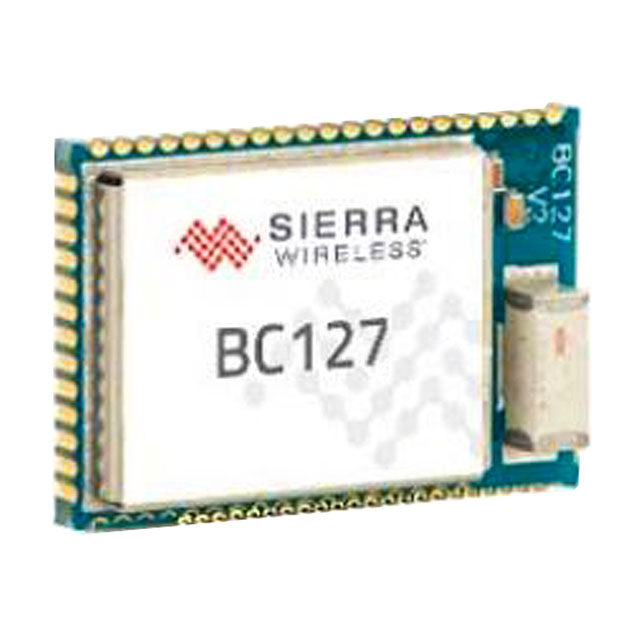

BC127-EXT-APTX_1103783

Obsolete

Sierra Wireless

RF TXRX MOD BT CAST SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC127-EXT-APTX_1103783

Obsolete

Sierra Wireless

RF TXRX MOD BT CAST SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BC127 Series

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.48GHz Antenna Not Included, Castellation Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC127-EXT-APTX_1103783	BC127 Series

Antenna Type	Antenna Not Included, Castellation	Antenna Not Included, Castellation, Integrated, Chip
Current - Receiving	15 mA	15 mA
Current - Transmitting	15 mA	15 mA
Data Rate	3 Mbps	3 Mbps
For Use With/Related Products	-	BC127, BC127-HD
Frequency	-	2.4 GHz
Frequency [Max]	2.48 GHz	2.48 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Memory Size	-	16 MB
Modulation	QPSK, GFSK, 8PSK	QPSK, GFSK, 8PSK, DQPSK, DPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	10 dBm	10 dBm
Protocol	Bluetooth v4.2	Bluetooth v4.2, Bluetooth v4.0 Dual Mode
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-88 dBm	-88 dBm
Supplied Contents	-	Cable(s), Board(s)
Type	-	Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Voltage - Supply [Max]	4.7 V	4.7 V
Voltage - Supply [Min]	3.3 V	3.3 V

BC127 Series

RF TXRX MOD BT CAST SMD

Part	Modulation	Power - Output	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Current - Receiving	Package / Case	Antenna Type	Data Rate	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Frequency [Min]	Frequency [Max]	Current - Transmitting	Type	For Use With/Related Products	Frequency	Supplied Contents	Memory Size
Sierra Wireless BC127-EXT-HD_1103784	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Antenna Not Included, Castellation	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Sierra Wireless BC127-HD_1103709	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated, Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Sierra Wireless BC127-DISKIT001_6001098																		Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE)	BC127	2.4 GHz	Board(s), Cable(s)
Sierra Wireless BC127-1103383	DPSK, DQPSK, GFSK	10 dBm	Bluetooth v4.0 Dual Mode	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated, Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth			15 mA			2.4 GHz		16 MB
Sierra Wireless BC127-APTX_1103708	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated, Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Sierra Wireless BC127-HD DIS KIT_6001115																		Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	BC127-HD	2.4 GHz	Board(s)
Sierra Wireless BC127-EXT-APTX_1103783	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Antenna Not Included, Castellation	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
