1052565-1

Active

TE Connectivity AMP Connectors

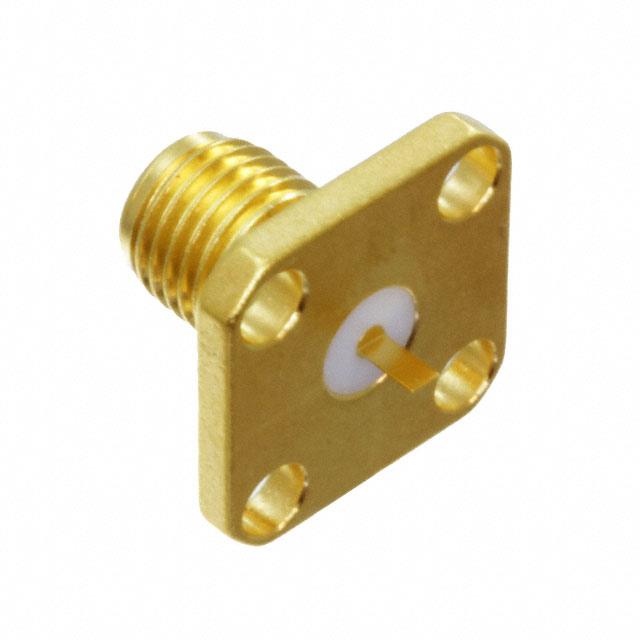

CONN SMA RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1052565-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA RCPT STR 50 OHM SOLDER

Part	Body Finish	Voltage Rating	Frequency - Max [Max]	Impedance	Connector Style	Number of Ports	Center Contact Material	Body Material	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Shield Termination	Contact Termination	Dielectric Material	Mating Cycles	Center Contact Plating
TE Connectivity AMP Connectors 1052565-1	Gold	335 V	18 GHz	50 Ohms	SMA	1	Beryllium Copper	Stainless Steel	Gold	Female Socket, Receptacle	125 °C	-65 ░C	Flange	Solder	Solder Tab	Polytetrafluoroethylene (PTFE)	500	Gold

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Tab
