Description
General part information

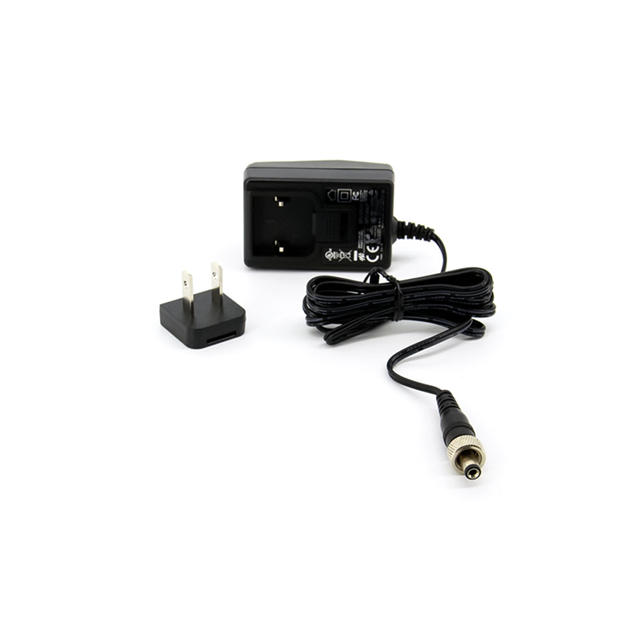

PWR-12050-WPUSJP-S1
12V AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PWR-12050-WPUSJP-S1 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 60.2 in |
| Current - Output (Max) | 500 mA |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Multi-Blade (Sold Separately) |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 7.5 mm |
| Output Connector O.D. | 5.5 mm |
| Region Utilized | North America |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 2.52 in |
| Size / Dimension Width | 1.59 in |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 12 V |
