MS112BPCX

Active

Switchcraft Inc.

CONN 1/4" PHONE JACK F 3 POS SOLDER ST THRU-HOLE 5 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 1/4" PHONE JACK F 3 POS SOLDER ST THRU-HOLE 5 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MS112BPCX	MS112B Series

Actual Diameter [diameter]	0.25 in	0.21 - 0.25 in
Actual Diameter [diameter]	6.35 mm	5.33 - 6.35 mm
Body Color	Silver, Black	Silver, Black
Body Material	Brass	Brass
Connector Type	Phone Jack	Phone Jack
Contact Material	Brass	Brass
Contact Material - Plating	Tin	Tin
Features	Thread Lock, Mounting Hardware	Thread Lock, Mounting Hardware
Gender	Female	Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Industry Recognized Mating Diameter	-	0.206 in
Industry Recognized Mating Diameter	-	5.23 mm
Internal Switch(s)	False	False
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Panel Hole Size	9.53 mm	9.53 mm
Panel Hole Size	0.375 in	0.375 in
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder	Solder Eyelet(s), Solder
Thread Size	3/8"-32	3/8"-32

CONN JACK STEREO 6.35MM PNL MNT

Part	Connector Type	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Thread Size	Contact Material - Plating	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Body Color	Shielding	Panel Hole Size	Panel Hole Size	Includes	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Material	Gender	Termination	Contact Material	Internal Switch(s)
Switchcraft Inc. MS112BX	Phone Jack	Stereo	0.21 in	5.33 mm	3/8"-32	Tin	Panel Mount, Through Hole	3	3	Mounting Hardware, Thread Lock	Black, Silver	Unshielded	9.53 mm	0.375 in	Connector, Nut, Washer	0.206 in	5.23 mm	Brass	Female	Solder Eyelet(s)	Brass
Switchcraft Inc. MS112BPCX	Phone Jack	Stereo	0.25 in	6.35 mm	3/8"-32	Tin	Panel Mount, Through Hole	3	3	Mounting Hardware, Thread Lock	Black, Silver	Unshielded	9.53 mm	0.375 in	Connector, Nut, Washer			Brass	Female	Solder	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 3.82

General part information

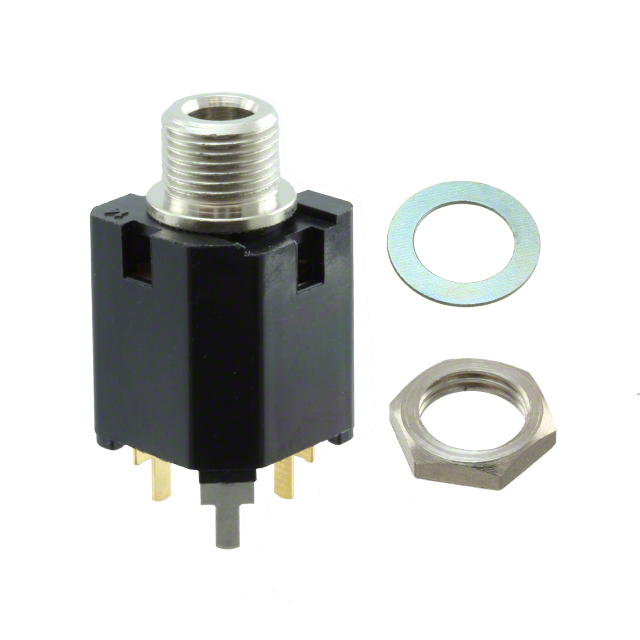

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
