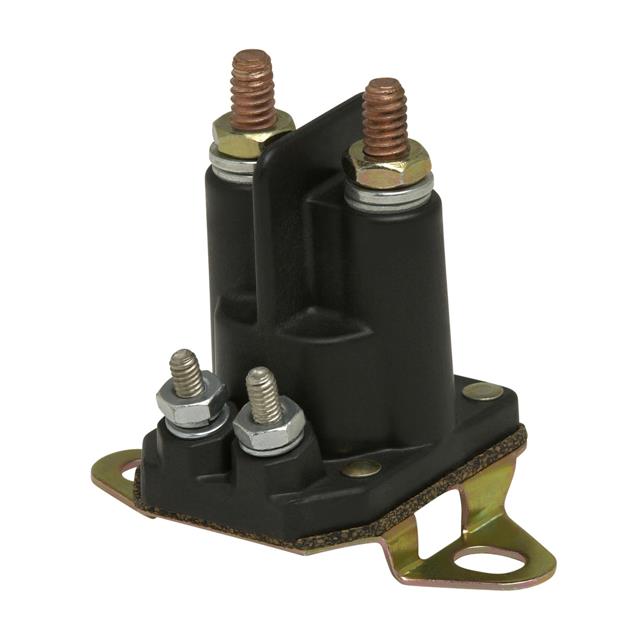

24624-10

Active

Cole Hersee

RELAY GEN PURPOSE SPST 100A 24V

Search across all available documentation for this part.

Active

Cole Hersee

RELAY GEN PURPOSE SPST 100A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPST 100A 24V

Part	Coil Current	Contact Form	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Termination Style	Coil Voltage	Mounting Type	Contact Rating (Current)	Coil Type	Operate Time	Contact Material	Release Time
Cole Hersee 24624-10	315.8 mA	SPST-NO (1 Form A)	General Purpose	-40 °C	60 °C	76 Ohms	Screw Terminal	24 VDC	Chassis Mount	100 A	Non Latching	5 ms	Silver (Ag)	5 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount

Technical documentation and resources
