PLTU0603U4702LST5
ActiveVishay Dale Thin Film
RES SMD 47K OHM 0.01% 0.15W 0603
PLTU0603U4702LST5
ActiveVishay Dale Thin Film
RES SMD 47K OHM 0.01% 0.15W 0603
Description
General part information
PLTU0603U4702LST5

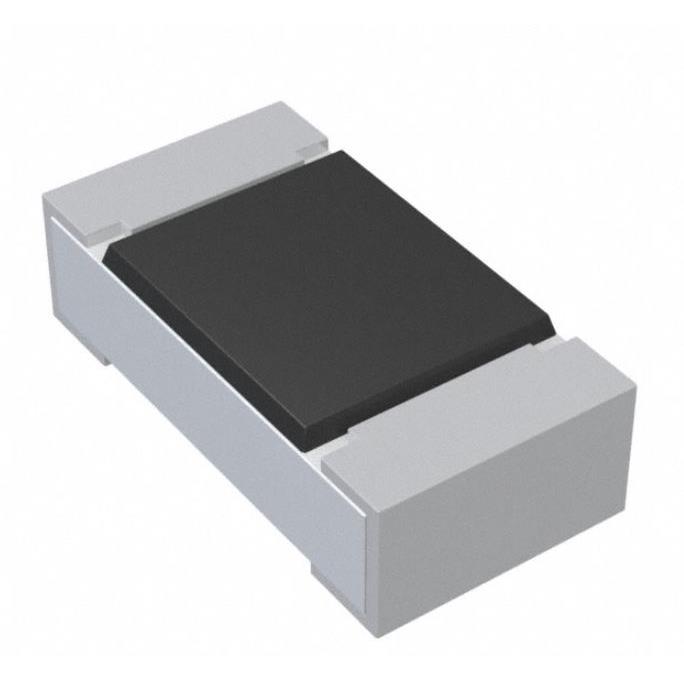

47 kOhms ±0.01% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PLTU0603U4702LST5 |
|---|---|
| Composition | Thin Film |
| Features | Flame Proof, Anti-Corrosive, Safety, Moisture Resistant |
| Height - Seated (Max) | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 150 mW |
| Resistance | 47 kOhm |
| Size / Dimension Length | 0.064 in |
| Size / Dimension Width | 0.032 in |
| Temperature Coefficient | 2 ppm/°C |
| Tolerance | 0.01 % |
