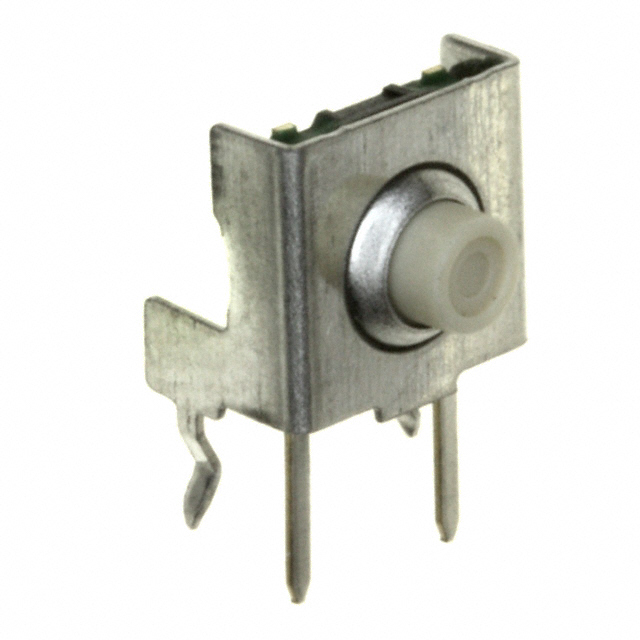

TL6110BF300QP
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL6110BF300QP |
|---|---|
| Actuator Length, Right Angle | 4 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Side Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 8.3 mm |
| Outline [y] | 5.8 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.5 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.24 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.66 | |||
| 2500 | $ 0.60 | |||
| 5000 | $ 0.59 | |||
Description
General part information
TL6110BF300QP
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
