2294600-R
ActiveSMARTRAID 3154-8I16E SINGLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
2294600-R
ActiveSMARTRAID 3154-8I16E SINGLE ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2294600-R | SmartRAID 3154-8i16e Series |
|---|---|---|
| - | - | |
| Interface | PCI Express | PCI Express |
| Number of Ports | 24 | 24 |
| Type | SAS/SATA | SAS/SATA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1227.20 | |
| Microchip Direct | N/A | 1 | $ 1227.19 | |
| Newark | Each | 1 | $ 1227.19 | |
SmartRAID 3154-8i16e Series
12G SAS/SATA PCIe® Gen 3 RAID Adapter
Description
General part information
SmartRAID 3154-8i16e Series
[](https://www.microchip.com/en-us/product/smartraid-3154-8i16e#)[](https://www.adaptec.com/ja-jp/products/smartraid/3100/) [](https://www.adaptec.com/ru-ru/products/smartraid/3100/) [](https://www.adaptec.com/de-de/products/smartraid/3100/) [](https://www.adaptec.com/zh-cn/products/smartraid/3100/)
The 12 Gbps Adaptec SmartRAID 3154-8i16e RAID adapter has 8 internal and 16 external SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Microchip's industry leading Smart Storage stack delivers maximum reliability and best-in-class performance that all RAID levels come to expect, plus unique features like Mixed Mode support (RAID and HBA devices can be used simultaneously), adapter power management (reduces power consumption up to 30 percent), and Advanced Data Management (ADM) features that allow data migration from existing RAID arrays.

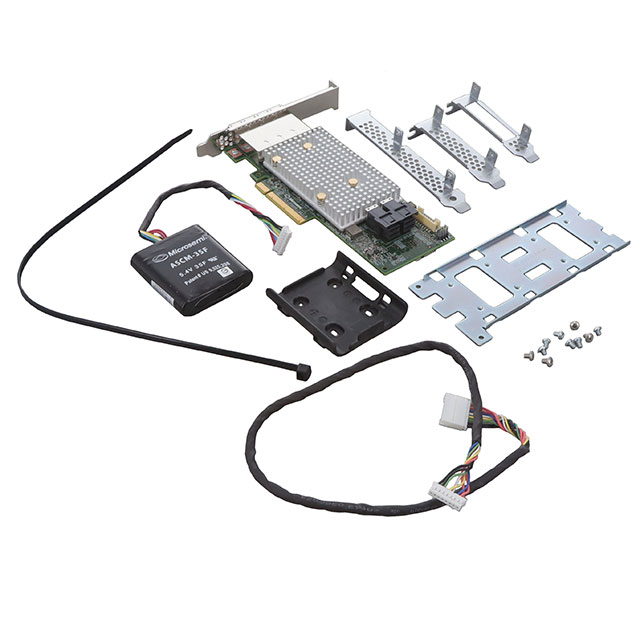

SmartRAID 3154-8i16e adapters include maxCache 4.0, and when coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS as well as acceleration and latency optimization through caching. The SmartRAID 3154-8i16e adapters also integrate flash-based cache backup to enable instant cache protection. The tethered ASCM-35F capacitor module ensures data is safely backed up to Flash memory in case of power loss.
