A6T-6102(VNM)

Active

Omron Electronics Inc-EMC Div

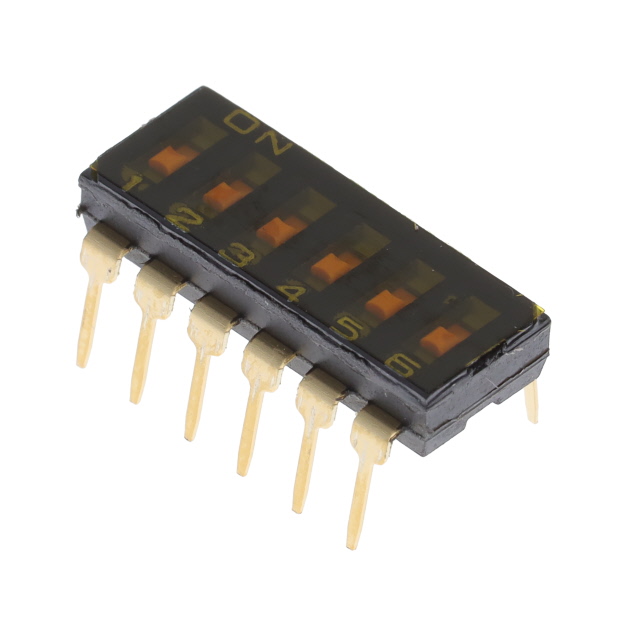

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6T-6102(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.45
		10	$ 2.38
		28	$ 2.17
		84	$ 1.88
		252	$ 1.71
		448	$ 1.59
		952	$ 1.47
		2408	$ 1.33
		4900	$ 1.24

Description

General part information

A6T Series

Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6T-6102(VNM)	A6T Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard), Piano
Circuit	SPST	SPST
Contact Finish	-	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	Tape Seal	Tape Seal
Height Above Board	3.6 mm	3.6 - 5.8 mm
Height Above Board	0.142 in	0.142 - 0.228 in
Height Above Board	-	0.189 - 0.197 in
Height Above Board	-	4.8 - 5 mm
Length	-	0.376 - 0.996 in
Length	-	9.55 - 25.3 mm
Length [x]	0.637 in	0.137 - 1.037 "
Length [x]	16.18 mm	3.48 - 26.34 mm
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	6	1 - 10
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-20 C	-30 - -20 ░C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	True	True, False

A6T Series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Electrical Life	Actuator Level	Length	Length	Circuit	Termination Style	Height Above Board [z]	Height Above Board [z]	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Voltage Rating	Length [x]	Length [x]	Height Above Board	Height Above Board	Mechanical Life	Features
Omron Electronics Inc-EMC Div A6TN-4101	1000 Cycles	Flush, Recessed	0.476 in	12.09 mm	SPST	PC Pin	0.189 in	4.8 mm	Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	Through Hole	4	24 VDC
Omron Electronics Inc-EMC Div A6T-3101(VNM)	1000 Cycles	Flush, Recessed			SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-20 C	70 °C	Through Hole		24 VDC	8.56 mm	0.337 "	3.6 mm	0.142 in	1000 Cycles
Omron Electronics Inc-EMC Div A6TN-3104	1000 Cycles	Raised	0.376 "	9.55 mm	SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	Through Hole		24 VDC			5.8 mm	0.228 in
Omron Electronics Inc-EMC Div A6TN-4104	1000 Cycles	Raised	0.476 in	12.09 mm	SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	Through Hole	4	24 VDC			5.8 mm	0.228 in
Omron Electronics Inc-EMC Div A6T-2101(VNM)	1000 Cycles	Flush, Recessed			SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-20 C	70 °C	Through Hole	2	24 VDC	6.02 mm	0.237 "	3.6 mm	0.142 in	1000 Cycles
Omron Electronics Inc-EMC Div A6TN-5104	1000 Cycles	Raised			SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	Through Hole		24 VDC	14.63 mm	0.576 "	5.8 mm	0.228 in
Omron Electronics Inc-EMC Div A6T-0101(VNM)	1000 Cycles	Flush, Recessed			SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-20 C	70 °C	Through Hole	10	24 VDC	26.34 mm	1.037 in	3.6 mm	0.142 in	1000 Cycles
Omron Electronics Inc-EMC Div A6T-4101(VNM)	1000 Cycles	Flush, Recessed	0.437 in	11.1 mm	SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-20 C	70 °C	Through Hole	4	24 VDC			3.6 mm	0.142 in	1000 Cycles
Omron Electronics Inc-EMC Div A6T-1102(VNM)	1000 Cycles	Flush, Recessed			SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-20 C	70 °C	Through Hole	1	24 VDC	3.48 mm	0.137 "	3.6 mm	0.142 in	1000 Cycles	Tape Seal
Omron Electronics Inc-EMC Div A6TN-6104	1000 Cycles	Raised	0.676 "	17.17 mm	SPST	PC Pin			Slide (Standard)	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	Through Hole	6	24 VDC			5.8 mm	0.228 in
