ZER-05V-S

Active

JST Sales America Inc.

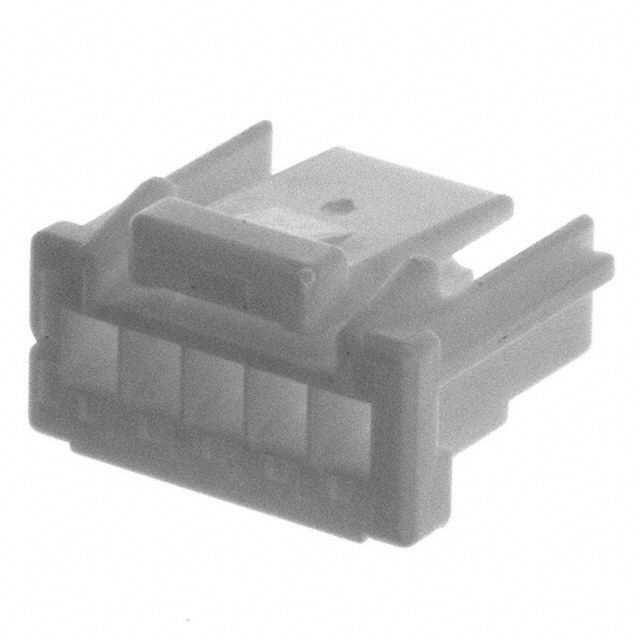

CONN RCPT HSG 5POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

ZER-05V-S

Active

JST Sales America Inc.

CONN RCPT HSG 5POS 1.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZER-05V-S	ZER Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	2 - 15
Number of Positions	-	16
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	1.5 mm	1.5 mm
Pitch [x]	0.059 in	0.059 in

ZER Series

CONN RCPT HSG 13POS 1.50MM

Part	Insulation Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Note	Connector Type	Contact Type	Mounting Type	Number of Positions
JST Sales America Inc. ZER-13V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	13	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-03V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder		Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-12V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	12	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-02V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	2	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-16V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder		Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)	16
JST Sales America Inc. ZER-06V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	6	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-05V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder		Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-07V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	7	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-15V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	15	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. ZER-14V-S	Polybutylene Terephthalate (PBT)	Natural	-25 °C	85 °C	Latch Holder	14	Crimp	1	1.5 mm	0.059 in	Contacts Not Included	Receptacle	Female Socket	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.13
		25	$ 0.12
		50	$ 0.11
		100	$ 0.10
		250	$ 0.09
		500	$ 0.08
		1000	$ 0.08
		2500	$ 0.07

Description

General part information

ZER Series

5 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
