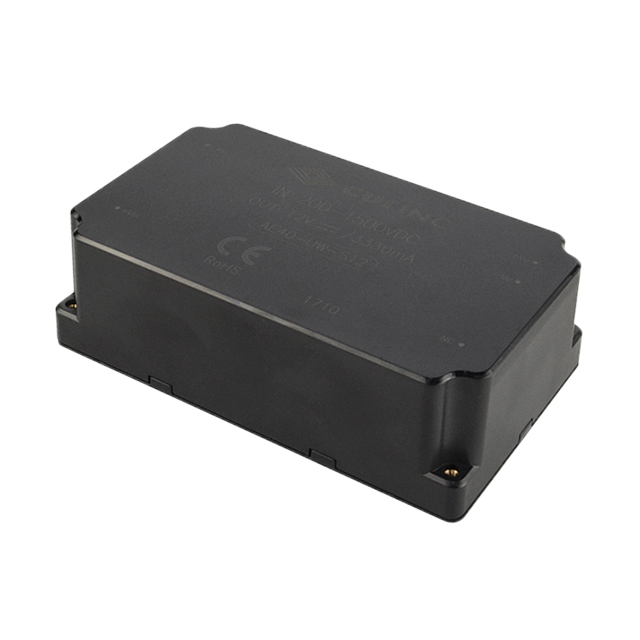

AE40-UW-S12

Obsolete

CUI Inc.

DC DC CONVERTER 12V 40W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 12V 40W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 24V 40W

Part	Mounting Type	Number of Outputs	Applications	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Approval Agency	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Features	Type	Standard Number
CUI Inc. AE40-UW-S24	Through Hole	1	ITE (Commercial)	80 %	1.57 "	40 mm	125 mm	4.92 in	75 mm	2.95 in	4000 V	40 W	CSA	24 V	1500 V	200 V	5-DIP Module	1.67 A	OCP, OVP, SCP	Isolated Module	C22.2 No. 107.1-01
CUI Inc. AE40-UW-S12	Through Hole	1	ITE (Commercial)	76 %	1.57 "	40 mm	125 mm	4.92 in	75 mm	2.95 in	4000 V	40 W	CSA	12 V	1500 V	200 V	5-DIP Module	3.33 A	OCP, OVP, SCP	Isolated Module	C22.2 No. 107.1-01

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 3.33A 200V - 1500V Input

Technical documentation and resources

No documents available
