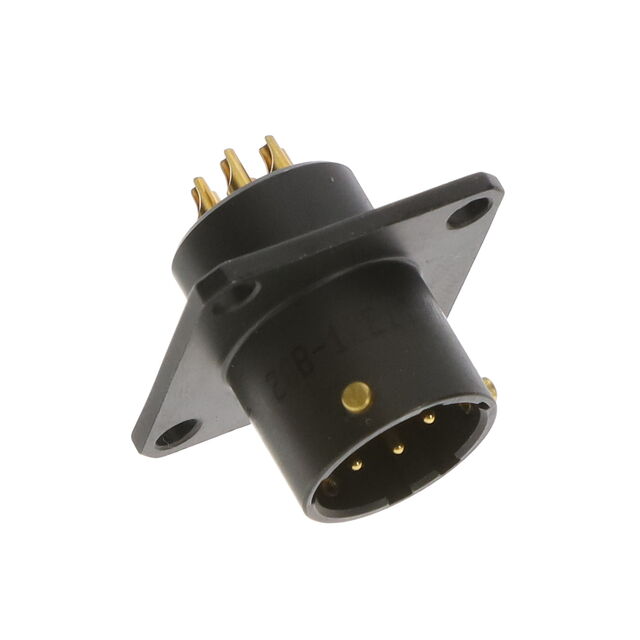

62GB12E1006PN

Active

Amphenol

CONN CIRCULAR PIN 6 POS SOLDER ST BOX MOUNT 6 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Amphenol

CONN CIRCULAR PIN 6 POS SOLDER ST BOX MOUNT 6 TERMINAL 1 PORT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins

Technical documentation and resources

Specification	62GB12E1006PN	62GB12 Series

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab	Olive Drab
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Fastening Type	Bayonet Lock	Bayonet Lock
Mounting Feature	Flange	Flange
Number of Positions	6	6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Zinc Cobalt	Zinc Cobalt
Shell Material	Aluminum	Aluminum
Shell Size - Insert	10	10 - 18
Shielding	Unshielded	Unshielded

Part	Shell Finish	Shell Size - Insert	Shell Material	Applications	Mounting Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Number of Positions	Color	Orientation	Contact Finish - Mating	Fastening Type	Primary Material
Amphenol 62GB12E1006PN	Zinc Cobalt	10	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	Flange	Male Pins, Receptacle	-55 °C	125 °C	Unshielded	6	Olive Drab	N	Gold	Bayonet Lock	Metal
Amphenol 62GB12E1832SN	Zinc Cobalt	18	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	Flange	Receptacle, Female Sockets	-55 °C	125 °C	Unshielded		Olive Drab	N	Gold	Bayonet Lock	Metal
