FMCN1886
ActiveFairview Microwave
CONN JACK CRIMP/SOLDER SMA
FMCN1886
ActiveFairview Microwave
CONN JACK CRIMP/SOLDER SMA
Description
General part information
FMCN1886

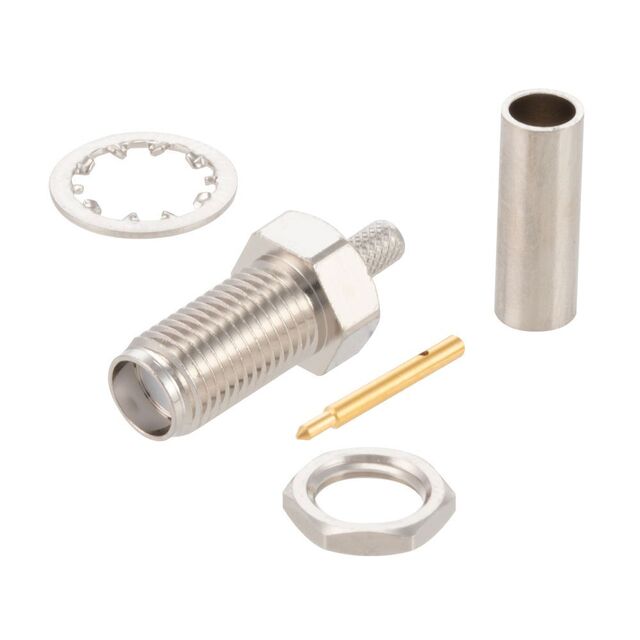

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1886 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316DS, RG-188DS |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
