LA CB37WP6

Active

Light-Avenue

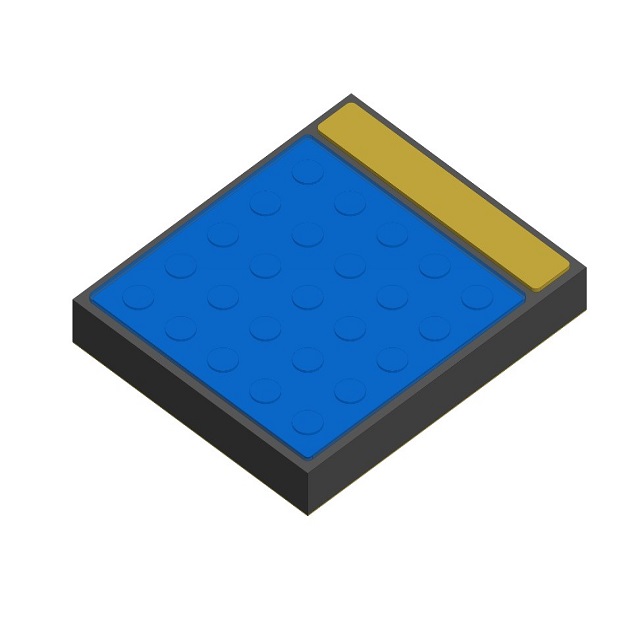

LED CYAN BLUE 490NM DIE

Search across all available documentation for this part.

Active

Light-Avenue

LED CYAN BLUE 490NM DIE

Technical Specifications

Parameters and characteristics for this part

Specification	LA CB37WP6

Color	Cyan Blue
Current - Max [Max]	1.5 A
Current - Test	350 mA
Height - Seated (Max) [Max]	0.007 "
Height - Seated (Max) [Max]	0.19 mm
Luminous Flux @ Current/Temperature	320 mW
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.1 V
Wavelength	490 nm

LED CYAN BLUE 490NM DIE

Part	Luminous Flux @ Current/Temperature	Viewing Angle	Supplier Device Package	Wavelength	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Package / Case	Current - Max [Max]	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)
Light-Avenue LA CB37WP6	320 mW	120 °	Die	490 nm	0.007 "	0.19 mm	Cyan Blue	Die	1.5 A	Surface Mount	350 mA	3.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Cyan Blue 490nm Die
