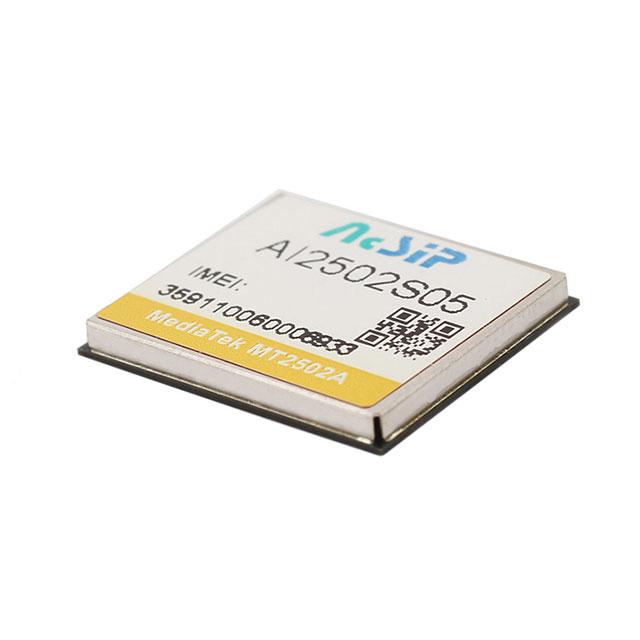

317030022
ObsoleteSeeed Technology Co., Ltd
RF TXRX MOD BT CELL SMD
317030022
ObsoleteSeeed Technology Co., Ltd
RF TXRX MOD BT CELL SMD
Description
General part information
317030022
Bluetooth, Cellular Bluetooth v4.0, GPRS, GSM Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 317030022 |
|---|---|
| Frequency | 850MHz, 900MHz, 1.9GHz, 1.8GHz, 2.4GHz |
| Frequency | 900 MHz, 1.8 GHz, 1.9 GHz, 850 MHz, 2.4 GHz |
| Memory Size ({type}) | 4 MB |
| Memory Size (Flash) | 16 MB |
| Memory Size (RAM) | 32 Mbit |
| Memory Size (SRAM) | 4 MB |
| Memory Type | RAM, Flash |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Module |
| Protocol | GPRS, GSM, Bluetooth v4.0 |
| RF Family/Standard | Bluetooth, Cellular |
| Serial Interfaces | I2C, I2S, SPI, UART, USB |
| Utilized IC / Part | MT2502A |
| Voltage - Supply | 3.3 V |
