031-242-RFX

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-242-RFX	031-24 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass	Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Sleeve, 1 Ferrule, 1 Contact	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut, 1 Sleeve, 1 Gasket, 1 Insulator
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC 0HZ TO 4GHZ 50OHM CRIMP ST PANEL MOUNT F GOLD BAG

Part	Body Finish	Number of Ports	Housing Color	Cable Group	Mounting Feature	Dielectric Material	Contact Termination	Connector Style	Impedance	Insertion Loss	Shield Termination	Includes	Mating Cycles	Voltage Rating	Frequency - Max [Max]	Connector Type	Center Contact Material	Fastening Type	Center Contact Plating	Body Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 031-245-RFX	Nickel	1	Silver	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	Bulkhead - Front Side Nut	Polyoxymethylene (POM) Acetal	Crimp	BNC	50 Ohms	0.2 dB	Crimp	1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut	500	500 V	4 GHz	Female Socket, Jack	Phosphor Bronze	Bayonet Lock	Gold	Brass
AMPHENOL RF 031-242-RFX	Nickel	1	Silver	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179		Polyoxymethylene (POM) Acetal	Crimp	BNC	50 Ohms	0.2 dB	Crimp	1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve	500	500 V	4 GHz	Male Pin, Plug	Brass	Bayonet Lock	Gold	Brass	Free Hanging (In-Line)	-65 ░C	165 °C
AMPHENOL RF 031-245	Nickel	1	Silver	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	Crimp	BNC	50 Ohms	0.2 dB	Crimp	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Sleeve	500	500 V	4 GHz	Female Socket, Jack	Phosphor Bronze	Bayonet Lock	Gold	Brass		-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

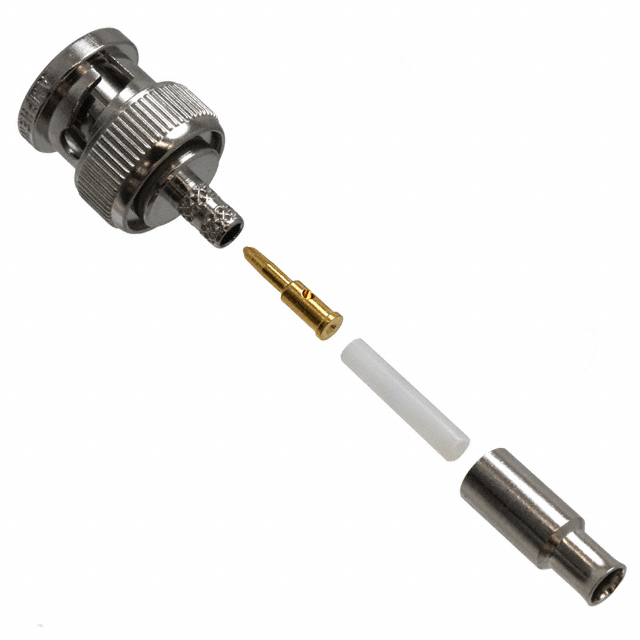

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
