827001-2

Active

TE Connectivity AMP Connectors

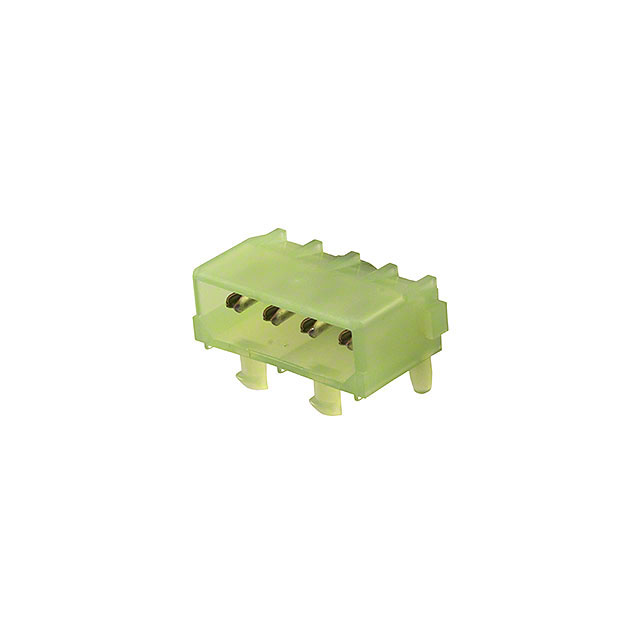

CONN HEADER R/A 4POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	827001-2

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insulation Color	Natural
Insulation Height	8.38 mm
Insulation Height	0.33 in
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

CONN HEADER R/A 4POS 5.08MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Shrouding	Current Rating (Amps)	Voltage Rating	Contact Finish - Post	Contact Type	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Insulation Height	Insulation Height	Features	Style	Insulation Color	Connector Type	Contact Shape	Applications	Number of Positions Loaded	Fastening Type
TE Connectivity AMP Connectors 827001-2	118.1 µin	3 µm	1	0.13 in	3.3 mm	Shrouded - 4 Wall	12 A	250 VAC	Tin	Male Pin	Solder	Through Hole, Right Angle	5.08 mm	0.2 in	105 ░C	-55 °C	4	Phosphor Bronze	8.38 mm	0.33 in	Board Guide, Board Lock	Board to Cable/Wire	Natural	Header	Circular	General Purpose	All	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)
