140-509-415-100

Active

EDAC Inc.

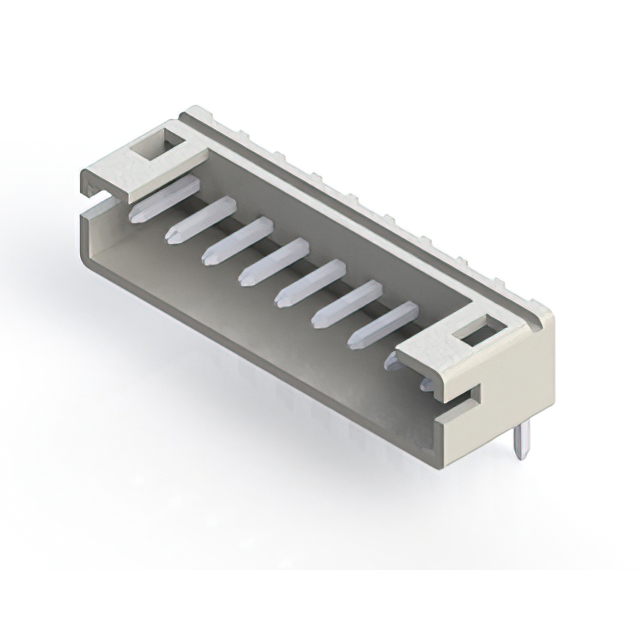

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 9 CONTACTS, THROUGH HOLE RIGHT ANGLE, 140 SERIES

Search across all available documentation for this part.

Active

EDAC Inc.

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 9 CONTACTS, THROUGH HOLE RIGHT ANGLE, 140 SERIES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.18
Newark	Each	1000	$ 0.20
		2500	$ 0.16

General part information

Connector Header Through Hole, Right Angle 9 position 0.079" (2.00mm)

Technical documentation and resources

Specification	140-509-415-100	140-509 Series

Color	-	Natural
Connector Type	Header	Receptacle, Header
Contact Finish - Post	Tin	Tin
Contact Length - Post [x]	0.134 in	0.134 in
Contact Length - Post [x]	3.4 mm	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.185 in	0.185 - 0.24 in
Insulation Height	4.7 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Free Hanging (In-Line), Surface Mount, Through Hole, Through Hole, Right Angle
Note	-	Contacts Not Included
Number of Positions	9	9
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	100 VAC	100 VAC

Part	Contact Termination	Features	Pitch [x]	Pitch [x]	Color	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Insulation Material	Note	Contact Type	Mounting Type	Shrouding	Current Rating (Amps)	Contact Material	Number of Positions Loaded	Contact Shape	Termination	Style	Material Flammability Rating	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
EDAC Inc. 140-509-210-011	Crimp	Polarizing Key	0.079 in	2 mm	Natural	Detent Lock	9	-25 °C	85 °C	1	Receptacle	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Female Socket	Free Hanging (In-Line)
EDAC Inc. 140-509-417-011		Solder Retention				Detent Lock	9	-40 °C	105 ░C	1	Header	Liquid Crystal Polymer (LCP)		Male Pin	Surface Mount	Shrouded - 4 Wall	2 A	Brass	All	Square	Solder	Board to Cable/Wire	UL94 V-0	Natural	5.51 mm	0.217 in	Tin	0.079 in	2 mm	100 VAC
EDAC Inc. 140-509-415-101						Detent Lock	9	-40 °C	105 ░C	1	Header	Polyamide (PA66), Nylon 6/6		Male Pin	Through Hole	Shrouded - 4 Wall	2 A	Brass	All	Square	Solder	Board to Cable/Wire	UL94 V-0	Natural			Tin	0.079 in	2 mm	100 VAC	0.24 in	6.1 mm
EDAC Inc. 140-509-415-100						Detent Lock	9	-40 °C	105 ░C	1	Header	Polyamide (PA66), Nylon 6/6		Male Pin	Through Hole, Right Angle	Shrouded - 4 Wall	2 A	Brass	All	Square	Solder	Board to Cable/Wire	UL94 V-0	Natural			Tin	0.079 in	2 mm	100 VAC	0.185 in	4.7 mm	0.134 in	3.4 mm
