RNHT0402BTE7K87
ActiveStackpole Electronics Inc
RES AUTO, 7.87 KOHM, 0402, 0.1%,
RNHT0402BTE7K87
ActiveStackpole Electronics Inc
RES AUTO, 7.87 KOHM, 0402, 0.1%,
Description
General part information
RNHT0402BTE7K87

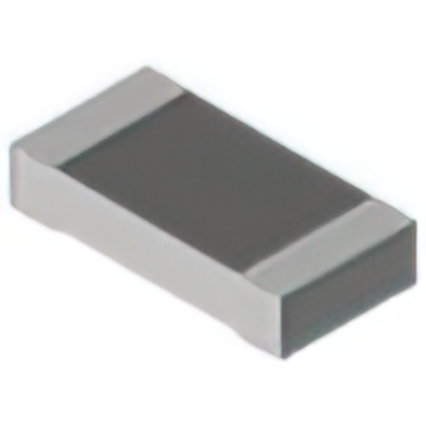

7.87 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNHT0402BTE7K87 |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Height - Seated (Max) | 0.014 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Power (Watts) | 0.063 W |
| Power (Watts) Options | 1/16W |
| Ratings | AEC-Q200 |
| Resistance | 7.87 kOhm |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
